Agco

GT55A

Tractor

Displacement
183 in³
Power Measured @
2,200 rpm
Gross Power
66.0 hp
All tractors

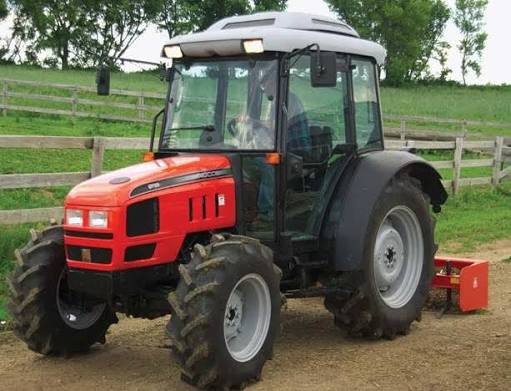

Agco GT55A Tractor
1 / 5
Image 1 of 5
Image: tractordata.com

Specifications

19 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity23.7 gal
3 Point Hitch Lift Capacity @ 24 inches3,520 lb
3 Point Hitch TypeCat II

Engine

Engine specifications
Displacement183 in³
Power Measured @2,200 rpm
Gross Power66.0 hp
Aspirationturbocharged
PTO Power56.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity22.8 gal/min
Number of Remote Control Valves2

Dimensions

Dimensions specifications
Height - Top of Cab104 in
Overall Length12 in
Overall Width71 in
Width Outside Frame71 in
Height - Top of ROPS/FOPS98 in

Transmission

Transmission specifications
Number of Forward Gears20
Transmission Typesynchro-shuttle
Number of Reverse Gears10

Axles

Axles specifications
Final Driveinternal planetary
