Agco

LT85A

Tractor

Displacement
269 in³
Power Measured @
2,200 rpm
All tractors

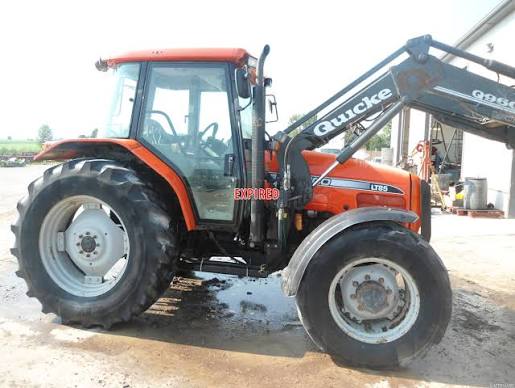

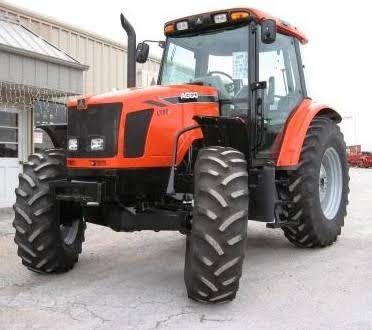

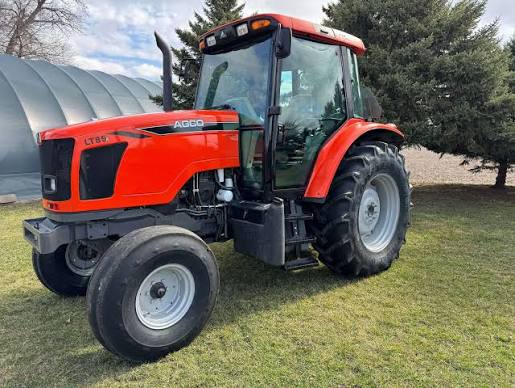

Agco LT85A Tractor
1 / 5
Image 1 of 5
Image: tractordata.com

Specifications

18 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity38.4 gal
3 Point Hitch Lift Capacity @ 24 inches7,815 lb
3 Point Hitch TypeCategory II

Engine

Engine specifications
Displacement269 in³
Power Measured @2,200 rpm
Number of Cylinders4
Aspirationturbocharged/intercooled
PTO Power85.0 hp

Hydraulic System

Hydraulic System specifications
Number of Remote Control Valves2

Dimensions

Dimensions specifications
Height - Top of Cab110 in
Wheelbase106 in
Overall Length14 in
Height - Top of ROPS/FOPS110 in
Height64 in

Transmission

Transmission specifications
Number of Forward Gears16
Transmission Typepowershift
Number of Reverse Gears16

Axles

Axles specifications
Final Driveinboard planetary
