Agco

LT90

Tractor

Displacement
275 in³
Power Measured @
2,200 rpm
All tractors
Agco LT90 Tractor
1 / 5

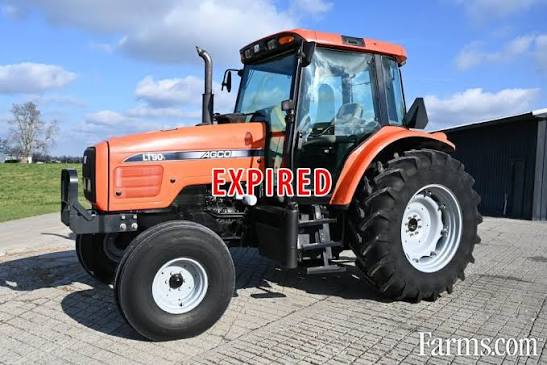

Image 1 of 5
Image: tractors.fandom.com

Specifications

18 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity39.0 gal
3 Point Hitch Lift Capacity @ 24 inches7,710 lb
3 Point Hitch TypeCategory II

Engine

Engine specifications
Displacement275 in³
Power Measured @2,200 rpm
Number of Cylinders4
AspirationWastegated Turbo
PTO Power85.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity26.0 gal/min
Number of Remote Control Valves2

Dimensions

Dimensions specifications
Height - Top of Cab110 in
Wheelbase97 in
Overall Length14 in
Height - Top of ROPS/FOPS64 in

Transmission

Transmission specifications
Number of Forward Gears16
Transmission TypePower/Mechanical
Number of Reverse Gears16

Axles

Axles specifications
Final DriveInboard Planetary
