Agco

ST41a

Tractor

Operating Weight
2,888 lb
Displacement
92 in³
Power Measured @
2,600 rpm
Gross Power
40.1 hp
All tractors

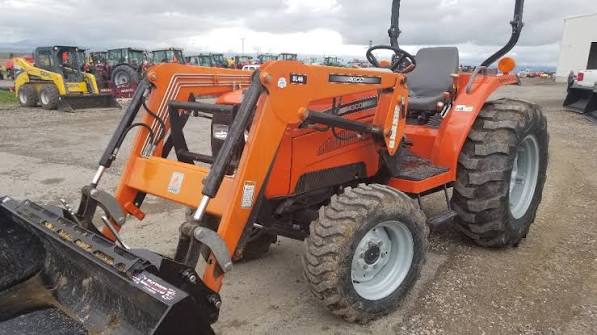

Agco ST41a Tractor
1 / 5
Image 1 of 5
Image: tractordata.com

Specifications

17 data points

Operating Specifications

Operating Specifications specifications
Operating Weight2,888 lb
3 Point Hitch Lift Capacity @ 24 inches2,535 lb
3 Point Hitch TypeCat I
Turning Radius100 in

Engine

Engine specifications
Displacement92 in³
Power Measured @2,600 rpm
Gross Power40.1 hp
Aspirationturbocharged
PTO Power31.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity9.1 gal/min

Dimensions

Dimensions specifications
Height - Top of Cab81 in
Wheelbase71 in
Overall Length10 in
Tire SizeAg R1
Width Outside Frame62 in

Transmission

Transmission specifications
Transmission Type8x8 synchroshuttle

Axles

Axles specifications
Final Driveoutboard spur gear
