Agco

ST47a

Tractor

Operating Weight
3,494 lb
Displacement
134 in³
Power Measured @
2,600 rpm
Gross Power
46.0 hp
All tractors

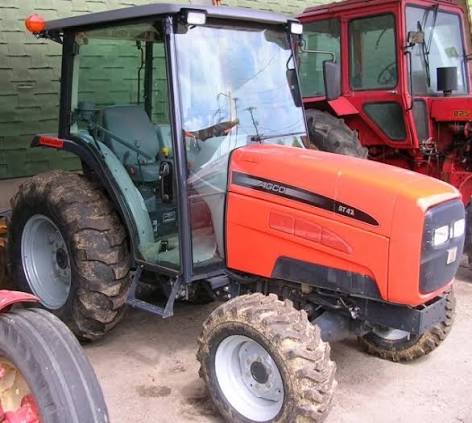

Agco ST47a Tractor
1 / 5
Image 1 of 5
Image: heavyequipmentspecs.com

Specifications

17 data points

Operating Specifications

Operating Specifications specifications
Operating Weight3,494 lb
3 Point Hitch Lift Capacity @ 24 inches3,086 lb
3 Point Hitch TypeCat I
Turning Radius110 in

Engine

Engine specifications
Displacement134 in³
Power Measured @2,600 rpm
Gross Power46.0 hp
Aspirationnatural
PTO Power38.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity11.6 gal/min

Dimensions

Dimensions specifications
Height - Top of Cab91 in
Wheelbase76 in
Overall Length11 in
Tire SizeAg R1
Width Outside Frame66 in

Transmission

Transmission specifications
Transmission Type8x8 synchroshuttle

Axles

Axles specifications
Final Driveoutboard spur gear
