Agrale
4230 Industrial
- Operating Weight
- 2,866 lb
- Displacement
- 78 in³
- Power Measured @
- 2,600 rpm
- Gross Power
- 26.0 hp
1 / 5

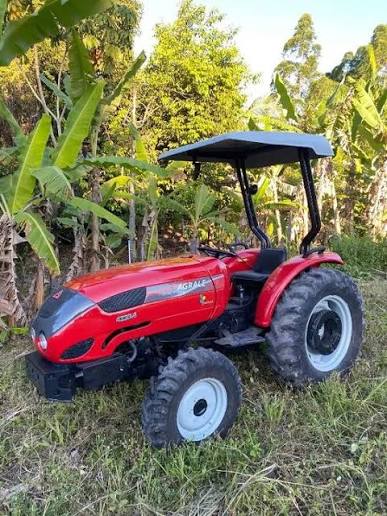

Image 1 of 5
Specifications
20 data points
Operating Specifications
| Operating Weight | 2,866 lb |
|---|---|
| Turning Radius | 103 in |
| Alternator Supplied Amperage | 55 A |
| Operating Voltage | 14 V |
| Tire Size Front - 2wd / 4wd | 5.60x15 |
Engine
| Engine Model | M 790 |
|---|---|
| Displacement | 78 in³ |
| Power Measured @ | 2,600 rpm |
| Gross Power | 26.0 hp |
| Number of Cylinders | 2 |
| Torque Measured @ | 2,250 rpm |
| Max Torque | 47 lb-ft |
Dimensions
| Wheelbase | 53 in |
|---|---|
| Overall Length | 9 in |
| Overall Width | 54 in |
| Height | 50 in |
Transmission
| Max Speed | 14.5 mph |
|---|---|
| Number of Forward Gears | 6 |
| Number of Reverse Gears | 2 |
Tires & Wheels
| Rear Tires Size | 9.00x20 |
|---|
