Airman

AX50U-4LA

Mini Excavator

Operating Weight
11,795 lb
Max Digging Depth
152 in
Net Power
40.0 hp
All mini excavators

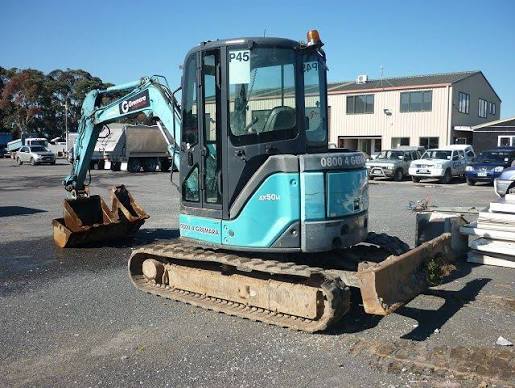

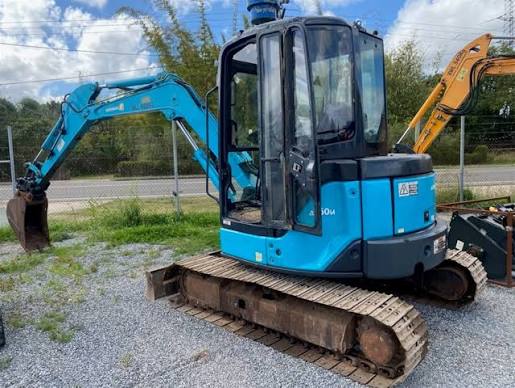

Airman AX50U-4LA Mini Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight11,795 lb
Hydraulic Pump Flow Capacity33.1 gal/min
Hydraulic System Relief Valve Pressure3,481 psi

Engine

Engine specifications
Engine Model4NTV88
Displacement134 in³
Power Measured @2,500 rpm
Net Power40.0 hp
Number of Cylinders4

Dimensions

Dimensions specifications
Ground Clearance13 in
Tail Swing Radius43 in
Width to Outside of Tracks79 in

Undercarriage

Undercarriage specifications
Max Travel Speed2.8 mph
Shoe Size16 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth152 in
Max Reach Along Ground247 in
Max Vertical Wall Digging Depth124 in
Max Loading Height166 in
Shipping Length of Unit219 in
Shipping Height of Unit101 in

Bucket

Bucket specifications
Reference Bucket Capacity0.30 yd³
