Al-Ghazi

480S

Tractor

Operating Weight
3,770 lb
Displacement
165 in³
Power Measured @
2,500 rpm
Gross Power
55.0 hp
All tractors

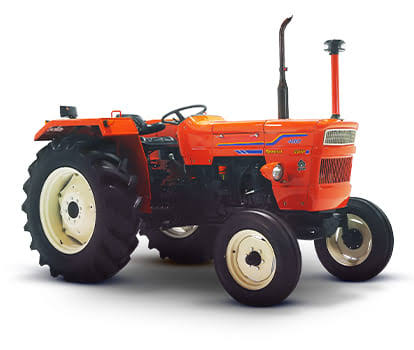

Al-Ghazi 480S Tractor
1 / 5
Image 1 of 5
Image: alghazitractors.com

Specifications

16 data points

Operating Specifications

Operating Specifications specifications
Operating Weight3,770 lb
Fuel Capacity14.3 gal
3 Point Hitch Lift Capacity @ 24 inches3,197 lb
Operating Voltage12 V
Tire Size Front - 2wd / 4wd6.00-16

Engine

Engine specifications
Displacement165 in³
Power Measured @2,500 rpm
Gross Power55.0 hp
Number of Cylinders3
Torque Measured @1,500 rpm
Max Torque168 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity6.0 gal/min

Transmission

Transmission specifications
Number of Forward Gears8
Transmission Typegearbox with constant mesh
Number of Reverse Gears2

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size12.1/11-28
