ASV

PT-30

Compact Track Loader

Operating Weight
3,305 lb
Max Speed - high range
6.0 mph
Displacement
92 in³
Gross Power
33.7 hp
All compact track loaders

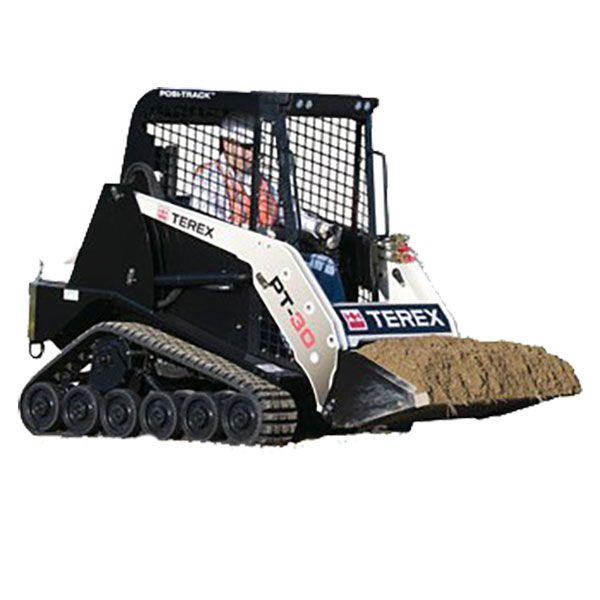

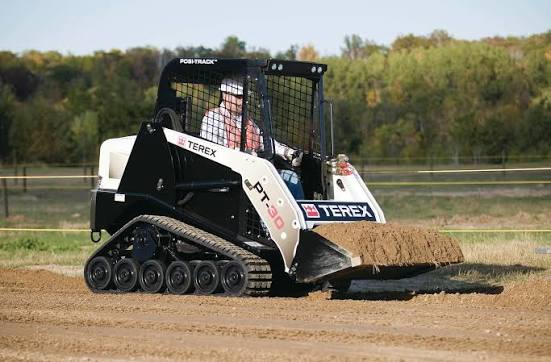

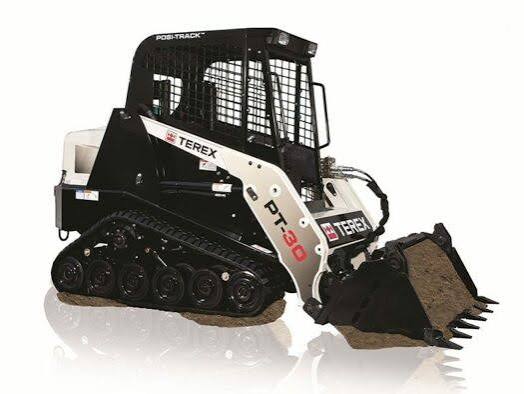

ASV PT-30 Compact Track Loader
1 / 5
Image 1 of 5
Image: jchire.com.au

Specifications

27 data points

Operating Specifications

Operating Specifications specifications
Operating Weight3,305 lb
Max Speed - high range6.0 mph
Fuel Capacity10.0 gal
Hydraulic System Fluid Capacity8.0 gal
Cooling System Fluid Capacity1.5 gal
Operating Voltage12 V
Alternator Supplied Amperage65 A
Engine Oil Capacity4.0 gal

Engine

Engine specifications
Engine Model403C-15
Displacement92 in³
Gross Power33.7 hp
AspirationNatural
Peak Torque64 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow10.0 gal/min
Relief Valve Pressure3,000 psi

Dimensions

Dimensions specifications
Ground Clearance10 in
Height - Top of Cab72 in
Width Over Tracks48 in
Length with Bucket113 in
Length - without Bucket91 in

Undercarriage

Undercarriage specifications
Ground Pressure3 psi
Length of Track on Ground55 in
Width of Track11 in
Number of Track Rollers per Side12
Ground Contact Area1,183 in³

Loader

Loader specifications
Tipping Angle1,600 °
Operating Load800 lb

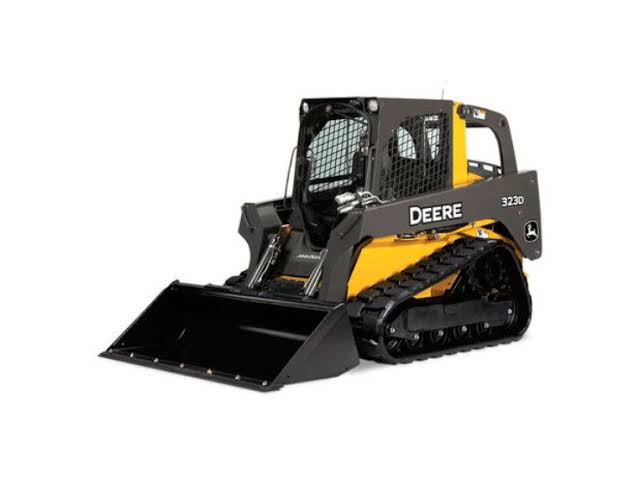

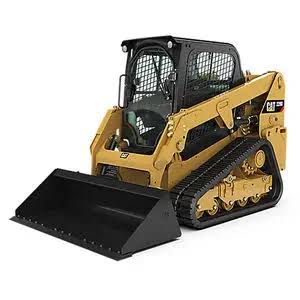

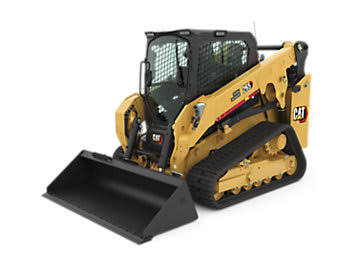

Comparable machines
