ASV

RC-30

Compact Track Loader

Operating Weight
3,305 lb
Max Speed - high range
5.9 mph
Displacement
92 in³
Gross Power
31.5 hp
All compact track loaders

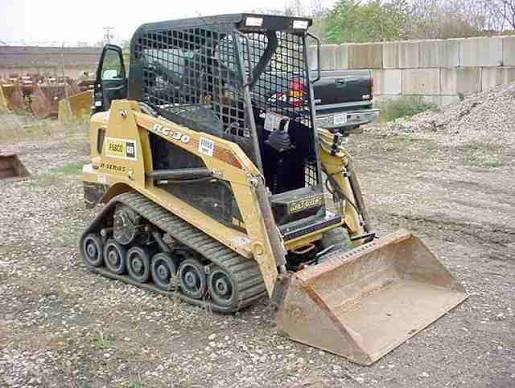

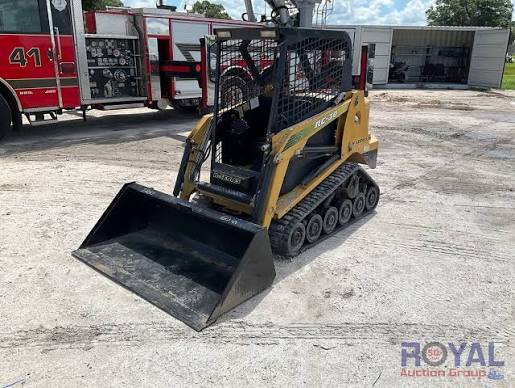

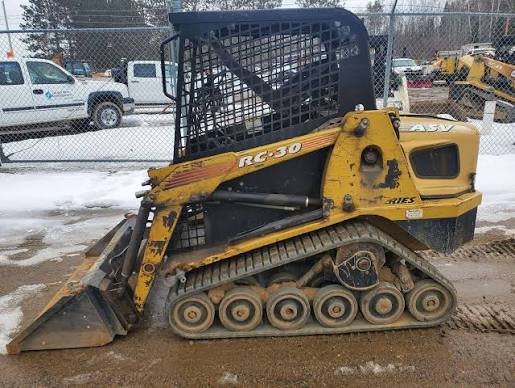

ASV RC-30 Compact Track Loader
1 / 5
Image 1 of 5
Image: forconstructionpros.com

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Operating Weight3,305 lb
Max Speed - high range5.9 mph
Fuel Capacity10.1 gal
Hydraulic System Fluid Capacity8.1 gal
Cooling System Fluid Capacity1.5 gal
Operating Voltage12 V
Alternator Supplied Amperage55 A
Engine Oil Capacity1.1 gal

Engine

Engine specifications
Engine Model403C-15
Displacement92 in³
Power Measured @2,800 rpm
Gross Power31.5 hp
Number of Cylinders3
Peak Torque64 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow10.0 gal/min
Relief Valve Pressure3,000 psi

Dimensions

Dimensions specifications
Ground Clearance10 in
Height - Top of Cab72 in
Width Over Tracks47 in
Length with Bucket113 in
Length - without Bucket91 in

Undercarriage

Undercarriage specifications
Ground Pressure3 psi
Length of Track on Ground55 in
Width of Track11 in
Number of Track Rollers per Side6
Ground Contact Area1,178 in³
Track Gauge36 in

Loader

Loader specifications
Tipping Angle1,600 °
Operating Load800 lb
