Bobcat

E55

Mini Excavator

Operating Weight
12,204 lb
Max Digging Depth
155 in
Net Power
49.8 hp
All mini excavators

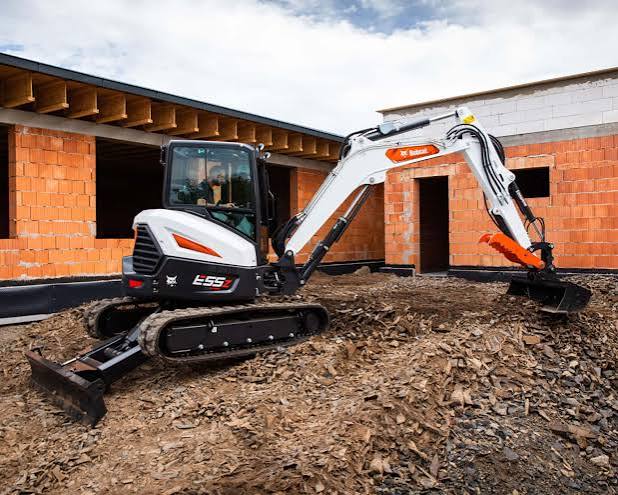

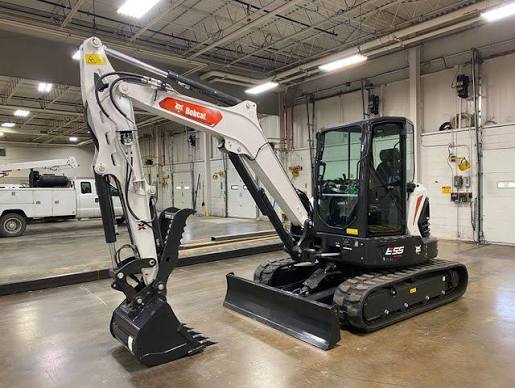

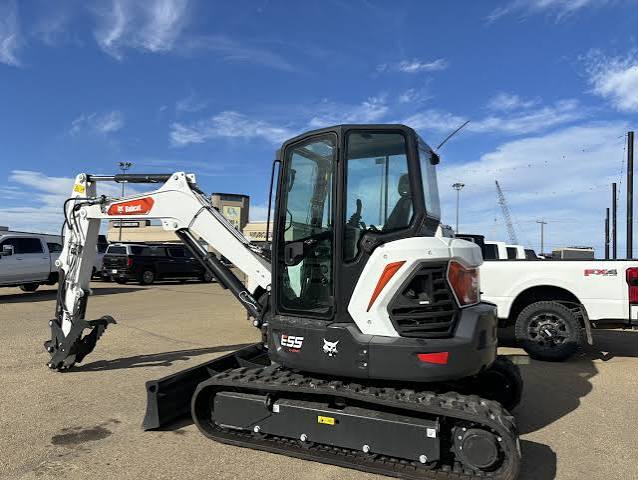

Bobcat E55 Mini Excavator
1 / 5
Image 1 of 5
Image: bobcat.com

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Operating Weight12,204 lb
Fuel Capacity21.1 gal

Engine

Engine specifications
Power Measured @2,200 rpm
Net Power49.8 hp
AspirationTier 4
FuelDiesel

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity20.0 gal/min

Dimensions

Dimensions specifications
Height - Top of Cab101 in
Length206 in
Width78 in

Undercarriage

Undercarriage specifications
Max Travel Speed3.1 mph
Min Travel Speed1.9 mph

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth155 in
Max Reach Along Ground240 in
Max Cutting Height163 in
Boom Swing - Left75 °
Boom Swing - Right50 °

Bucket

Bucket specifications
Bucket digging Force - SAE8,977 lb
Arm digging Force5,751 lb

General Specifications

General Specifications specifications
Operating Weight lbs (kg)11,357 (5,151) — Starting 2025 Model Year
Digging Depth ft (m)11.41 (3.48) — Starting 2025 Model Year
Engine hp (kW)49.7 (36.5) — Starting 2025 Model Year
Digging Reach ft. (m)19.33 (5.89) — Starting 2025 Model Year
Bucket Breakout Force lbf (N)9,511 (42,307) — Starting 2025 Model Year

Lift System

Lift System specifications
Max Lift Capacity4,999 lb
Lift Radius118 in
