Brandt

Contour Commander 70

Agricultural Machine

Transport Width
158 in
Working Width
840 in
Transport Height
152 in
Max Weight
13,393 lb
All miscellaneous agriculture

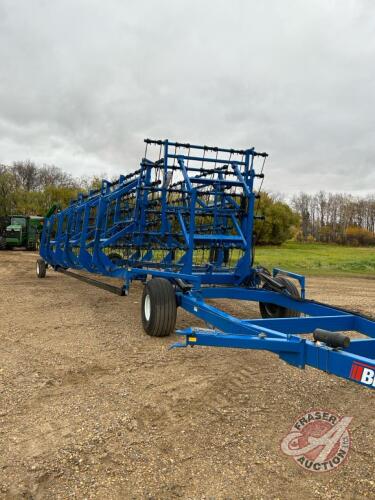

Brandt Contour Commander 70 Agricultural Machine
1 / 5
Image 1 of 5
Image: fraser.canbid.com

Specifications

19 data points

Dimensions

Dimensions specifications
Transport Width158 in
Transport Height152 in
Max Weight13,393 lb
PTO Power Required per Width Ft.3.0 hp
Wing Tires9.5L x 15
Overall Length54 in

Tires & Wheels

Tires & Wheels specifications
Tires16.5L x 16.1

Frame

Frame specifications
Working Width840 in
Frame Clearance - Wing28 in
Main Beam Size8"" x 8"
Frame Clearance - Center22 in

Harrow

Harrow specifications
Tine Size1 in
Tine Spacing2 in
Number of Bars5
Tine Angle - max90 °
Tine Angle - min45 °
Down Pressure1,900 lb
Section Width10'
Tine AdjustmentManual (Standard) or Hydraulic (Optional)
