Case IH

2188

Combine

Operating Weight w/o Attachment
20,944 lb
Displacement
507 in³
Power
276.3 hp
All combines/harvesters

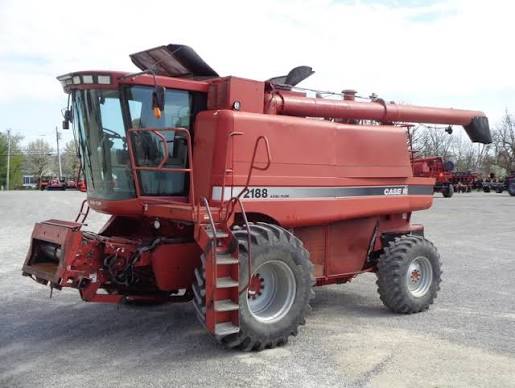

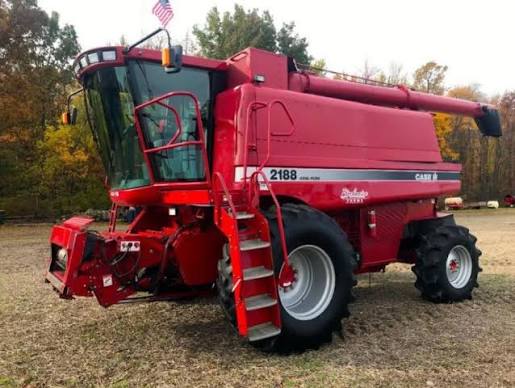

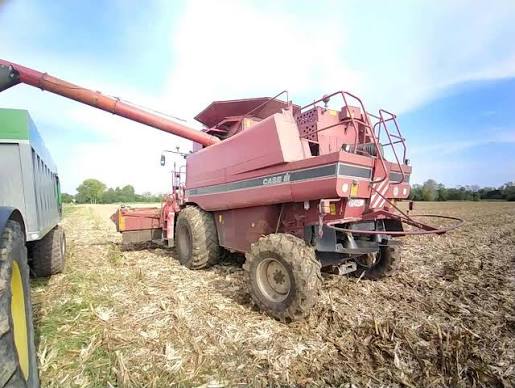

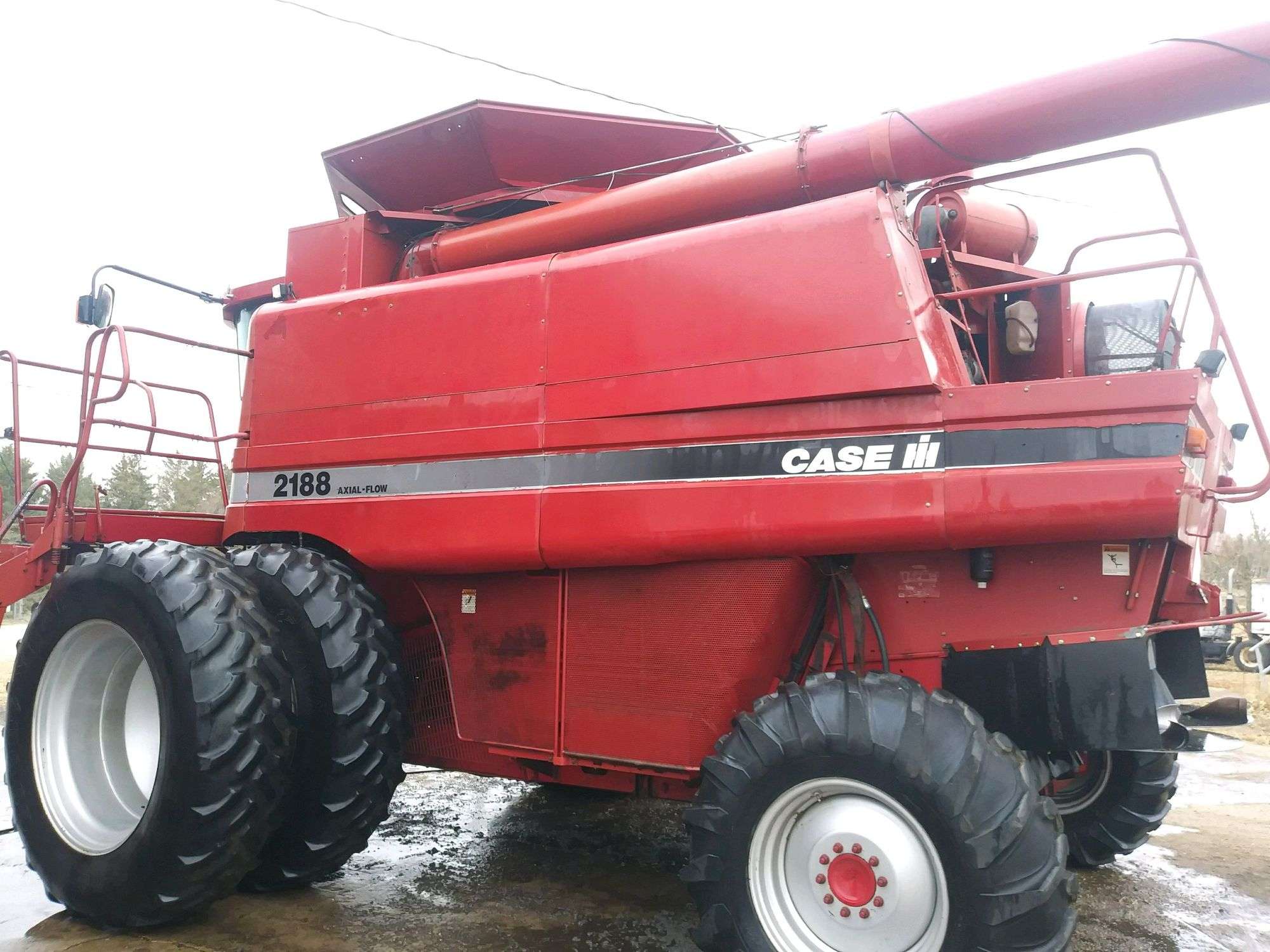

Case IH 2188 Combine
1 / 5
Image 1 of 5
Image: fragodtauctions.com

Specifications

17 data points

Operating Specifications

Operating Specifications specifications
Operating Weight w/o Attachment20,944 lb
Max Speed12.5 mph
Transmission TypeHydraulic transmission
Number of Gears3

Engine

Engine specifications
Engine Model6TA-830
Displacement507 in³
Number of Cylinders6
Engine MakeCase IH Motor Cummins
Power276.3 hp

Dimensions

Dimensions specifications
Overall Length268 in
Height to Top of Isomount Cab156 in
Width138 in

Tires & Wheels

Tires & Wheels specifications
Standard_Rear1490-24
Standard fitment size650/75R32

Cleaning System

Cleaning System specifications
Total Sieve Area-Fixed8,680 in³

Threshing

Threshing specifications
Rotor Diameter30 in
width108 in

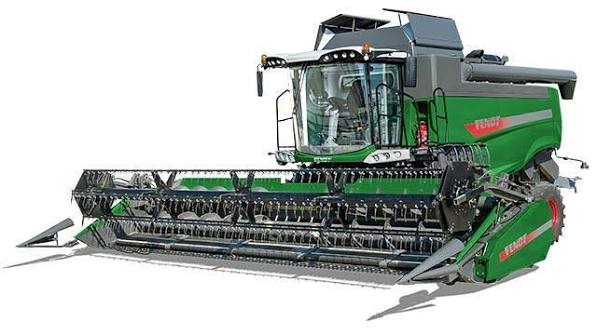

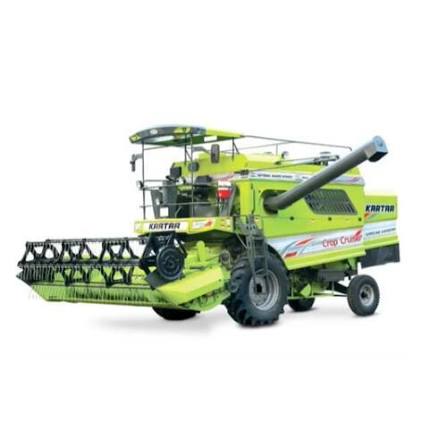

Comparable machines
