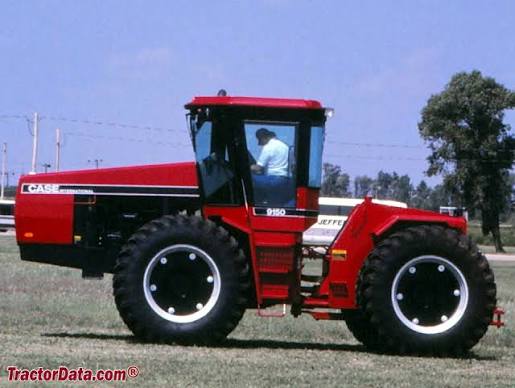

Image 1 of 5
Specifications
37 data points
Operating Specifications
| Operating Weight | 22,999 lb |
|---|---|
| Fuel Capacity | 170.0 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 12,750 lb |
| 3 Point Hitch Type | III |
| Operating Voltage | 12 V |
| Cooling System Fluid Capacity | 15.1 gal |
| Hydraulic System Fluid Capacity | 18.0 gal |
| Engine Oil Capacity | 8.3 gal |
| Front Tire Size | 20.8-38 |
| Rear Tire Size | 20.8-38 |
Engine
| Engine Model | LTA-10 |
|---|---|
| Displacement | 610 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 280.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,300 rpm |
| Engine Make | Cummins |
| PTO Power | 245.0 hp |
| Bore | 5 in |
| Stroke | 5 in |
| Torque | 910 lb-ft |
Hydraulic System
| Pump Flow Capacity | 27.0 gal/min |
|---|---|
| Number of Remote Control Valves | — |
| Relief Valve Pressure | 2,500 psi |
| Hydraulic System Type | Closed center |
Dimensions
| Ground Clearance | 23 in |
|---|---|
| Height - Top of Cab | 144 in |
| Wheelbase | 130 in |
| Overall Length | 273 in |
Transmission
| Max Speed - Reverse | 4.8 mph |
|---|---|
| Max Speed - Forward | 17.3 mph |
| Number of Forward Gears | 12 |
| Transmission Type | Full power shift |
| Number of Reverse Gears | 2 |
Production
| Series | 9100 Series |
|---|---|
| Years Manufactured | 1,986 – 1,990 |
