Case IH

FARMALL 40

Tractor

Operating Weight
4,402 lb
Displacement
122 in³
Power Measured @
2,600 rpm
Gross Power
40.0 hp
All tractors

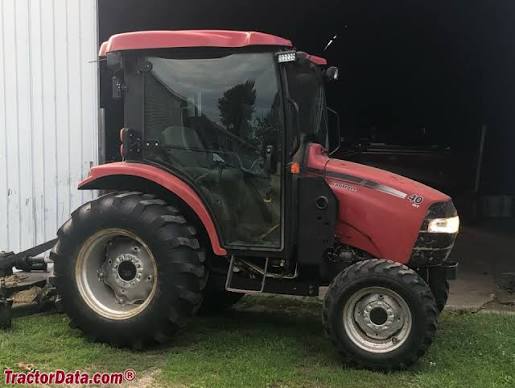

Case IH FARMALL 40 Tractor
1 / 5
Image 1 of 5
Image: tractorzoom.com

Specifications

16 data points

Operating Specifications

Operating Specifications specifications
Operating Weight4,402 lb
Fuel Capacity13.0 gal
3 Point Hitch Lift Capacity @ 24 inches2,330 lb

Engine

Engine specifications
Displacement122 in³
Power Measured @2,600 rpm
Gross Power40.0 hp
Number of Cylinders4
PTO Power33.2 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity14.9 gal/min

Dimensions

Dimensions specifications
Wheelbase74 in
Overall Length11 in
Overall Width67 in
Height - Top of ROPS/FOPS96 in

Transmission

Transmission specifications
Transmission TypeHydrostatic

Production

Production specifications
SeriesFarmall Compact Series
Years Manufactured2,008 – 2,011
