Case IH

FARMALL 55

Tractor

Operating Weight
4,238 lb
Displacement
134 in³
Power Measured @
2,700 rpm
Gross Power
55.0 hp
All tractors

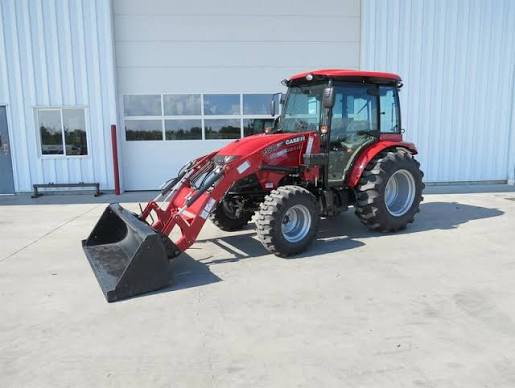

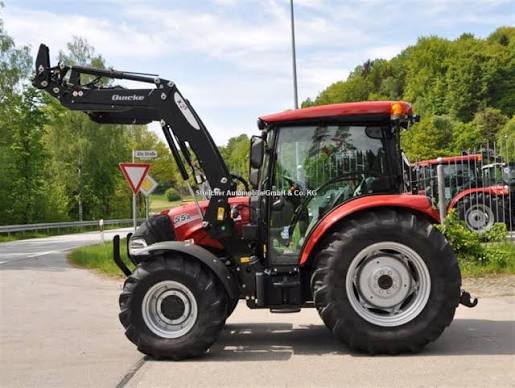

Case IH FARMALL 55 Tractor
1 / 5
Image 1 of 5
Image: caseih.com

Specifications

17 data points

Operating Specifications

Operating Specifications specifications
Operating Weight4,238 lb
Fuel Capacity13.5 gal
3 Point Hitch Lift Capacity @ 24 inches3,465 lb

Engine

Engine specifications
Displacement134 in³
Power Measured @2,700 rpm
Gross Power55.0 hp
Number of Cylinders4
AspirationTurbocharged
PTO Power46.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity17.0 gal/min

Dimensions

Dimensions specifications
Wheelbase76 in
Overall Length12 in
Overall Width65 in
Height - Top of ROPS/FOPS96 in

Transmission

Transmission specifications
Number of Forward Gears12
Transmission Type12 x 12 Powershuttle
Number of Reverse Gears12
