Case IH

FARMALL 85C

Tractor

Operating Weight
6,504 lb
Displacement
275 in³
Power Measured @
2,300 rpm
Gross Power
84.0 hp
All tractors

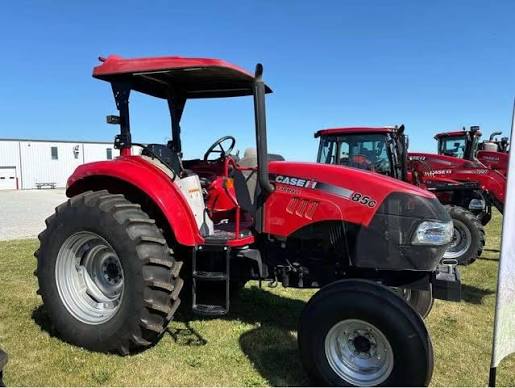

Case IH FARMALL 85C Tractor
1 / 5
Image 1 of 5
Image: agdealer.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,504 lb
Fuel Capacity23.3 gal
3 Point Hitch Lift Capacity @ 24 inches3,960 lb
Alternator Supplied Amperage120 A

Engine

Engine specifications
Displacement275 in³
Power Measured @2,300 rpm
Gross Power84.0 hp
Number of Cylinders4
AspirationTurbocharged intercooled
Torque Measured @1,400 rpm
PTO Power70.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity24.4 gal/min
Number of Remote Control Valves1
Relief Valve Setting2,755 psi

Dimensions

Dimensions specifications
Wheelbase86 in
Overall Length13 in
Overall Width94 in
Height - Top of ROPS/FOPS96 in
Height76 in

Transmission

Transmission specifications
Max Speed18.7 mph
Number of Forward Gears16
Transmission Type16 x 16 w/ mechanical shuttle
Number of Reverse Gears16

Production

Production specifications
SeriesFarmall C Series
Years Manufactured2,008 – 2,015
