Case IH

FARMALL 95U

Tractor

Displacement
275 in³
Power Measured @
2,300 rpm
Gross Power
95.0 hp
All tractors

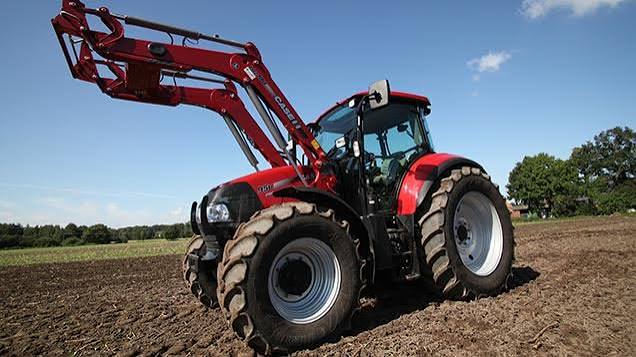

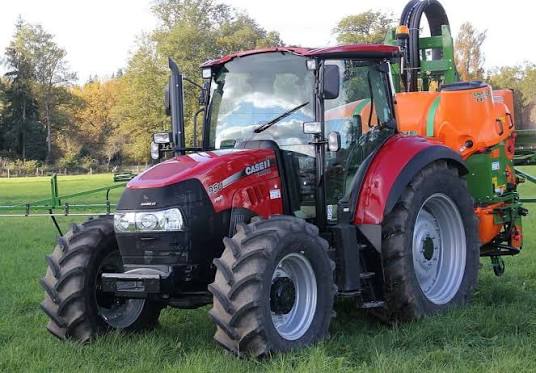

Case IH FARMALL 95U Tractor
1 / 5
Image 1 of 5
Image: tractors.fandom.com

Specifications

17 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity33.6 gal
3 Point Hitch Lift Capacity @ 24 inches5,745 lb
Alternator Supplied Amperage120 A

Engine

Engine specifications
Displacement275 in³
Power Measured @2,300 rpm
Gross Power95.0 hp
Number of Cylinders4
Aspirationturbocharged intercooled
PTO Power80.0 hp

Hydraulic System

Hydraulic System specifications
Number of Remote Control Valves2

Dimensions

Dimensions specifications
Height - Top of ROPS/FOPS106 in
Height84 in

Transmission

Transmission specifications
Number of Forward Gears12
Number of Reverse Gears12

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size18.4R30

Production

Production specifications
SeriesFarmall U Series
Years Manufactured2,008 – 2,018
