Case IH

MX110

Tractor

Operating Weight
12,458 lb
Displacement
360 in³
Power Measured @
2,200 rpm
Gross Power
110.0 hp
All tractors

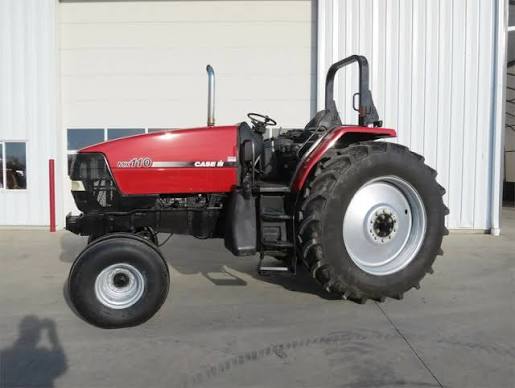

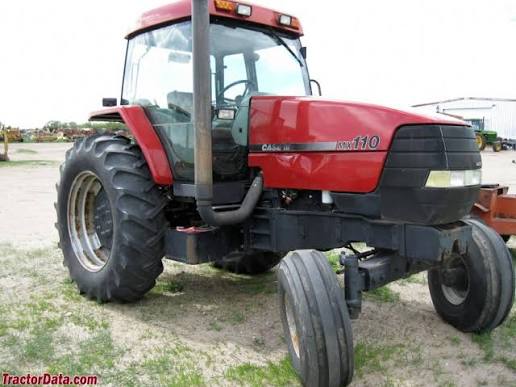

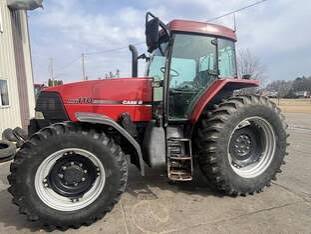

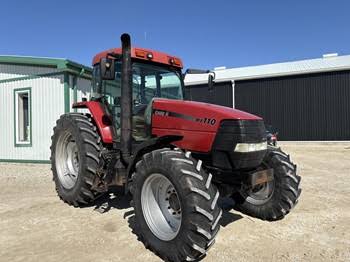

Case IH MX110 Tractor
1 / 5
Image 1 of 5
Image: bills-tractors.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight12,458 lb
Fuel Capacity72.0 gal
3 Point Hitch Lift Capacity @ 24 inches8,393 lb
Alternator Supplied Amperage65 A
Operating Voltage12 V
Hydraulic System Fluid Capacity17.5 gal

Engine

Engine specifications
Displacement360 in³
Power Measured @2,200 rpm
Gross Power110.0 hp
Number of Cylinders6
Engine MakeCaseIH
PTO Power95.0 hp
Stroke5 in
Bore4 in

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity25.0 gal/min
Number of Remote Control Valves2
Pump TypeClosed center pressure flow
Maximum system pressure2,950 psi

Dimensions

Dimensions specifications
Wheelbase111 in
Overall Length198 in

Transmission

Transmission specifications
Number of Forward Gears16
Transmission TypeSynchromesh
Number of Reverse Gears12

Production

Production specifications
SeriesMaxxum Series
Years Manufactured1,997 – 1,999
