Case IH

MX120

Tractor

Operating Weight
12,458 lb
Power Measured @
2,200 rpm
Gross Power
120.0 hp
All tractors

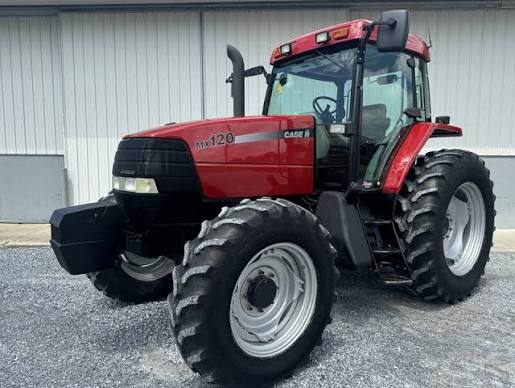

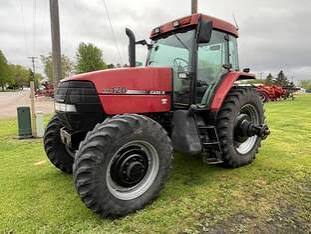

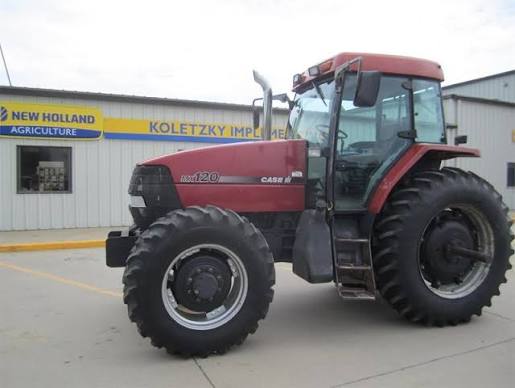

Case IH MX120 Tractor
1 / 5
Image 1 of 5
Image: htrtractor.com

Specifications

27 data points

Operating Specifications

Operating Specifications specifications
Operating Weight12,458 lb
Fuel Capacity72.0 gal
3 Point Hitch Lift Capacity @ 24 inches8,393 lb
Operating Voltage12 V
Tire Size Front - 2wd / 4wd11.00-16
Hydraulic System Fluid Capacity17.5 gal

Engine

Engine specifications
Power Measured @2,200 rpm
Gross Power120.0 hp
Number of Cylinders6
Engine MakeCaseIH
PTO Power105.0 hp
Stroke5 in
Bore4 in

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity25.0 gal/min
Number of Remote Control Valves4
Pump TypeClosed center pressure flow
Maximum system pressure2,950 psi

Dimensions

Dimensions specifications
Ground Clearance24 in
Wheelbase111 in
Overall Length198 in
Height - Top of ROPS/FOPS115 in

Transmission

Transmission specifications
Number of Forward Gears16
Transmission TypeSynchromesh
Number of Reverse Gears12

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size18.4R-38

Production

Production specifications
SeriesMaxxum Series
Years Manufactured1,997 – 2,002
