Case IH

PATRIOT 3185

Sprayer

Max Speed
27.0 mph
Solution Tank Capacity
749.9 gal
Displacement
360 in³
Gross Power
185.0 hp
All floaters/sprayers

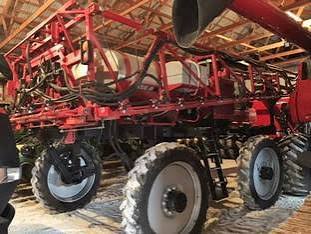

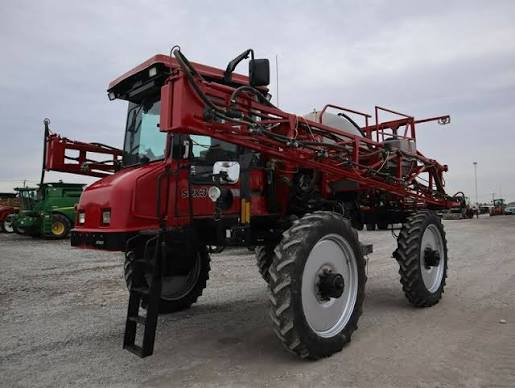

Case IH PATRIOT 3185 Sprayer
1 / 5
Image 1 of 5
Image: pinterest.com

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Solution Tank Capacity749.9 gal
Rinse Tank Capacity35.0 gal
Foam Marker Tank Capacity35.0 gal
Dry Weight - max17,256 lb

Engine

Engine specifications
Displacement360 in³
Gross Power185.0 hp
Number of Cylinders6
Aspirationturbo-charged after-cooled
Gross Torque550 lb-ft

Dimensions

Dimensions specifications
Ground Clearance50 in
Wheelbase120 in
Overall Length90 in
Transport Width138 in
Transport Height138 in
Tire Size320/90 R42

Transmission

Transmission specifications
Max Speed27.0 mph
Transmission Typehydrostatic
Number of Forward Gears3
Number of Reverse Gears3

Boom

Boom specifications
Max Boom Width1,080 in
Min Boom Width900 in
Max Adjustable Height70 in
Min Adjustable Height30 in
Nozzle Spacing20 in
