Case IH

RB565

Baler

Bale Width
62 in
Overall Width
60 in
Overall Width
128 in
Overall Height
115 in
All balers

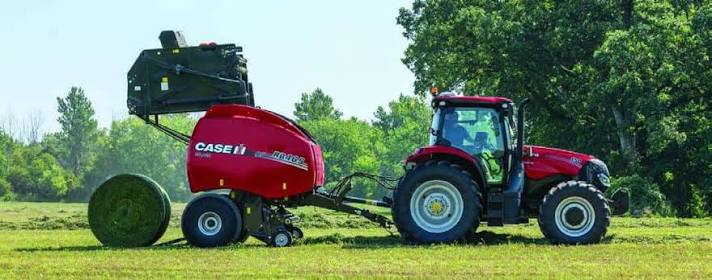

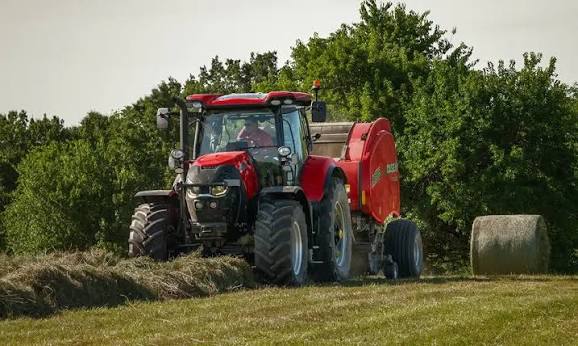

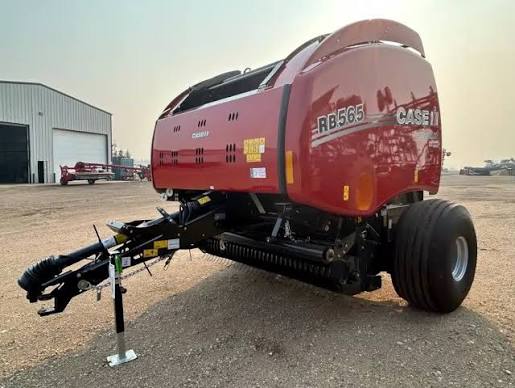

Case IH RB565 Baler
1 / 5
Image 1 of 5
Image: ascoeq.com

Specifications

42 data points

Engine

Engine specifications
Number of hydraulic remote circuits1 or 2
Tractor power80.5 hp

Dimensions

Dimensions specifications
Overall Length190 in
Overall Width128 in
Overall Height115 in

Tires & Wheels

Tires & Wheels specifications
Standard18L-16.1SL 10PR
Option21.5Lx16.1 10PR

Bale Size

Bale Size specifications
Bale Width62 in
Bale Diameter - max73 in
Bale Diameter - min36 in
Bale Weight - max2,200 lb
Bale Weight - min500 lb

Baler Pickup

Baler Pickup specifications
Overall Width60 in
Tine to Tine Width44 in
Number of Tines72
Tine spacing3 in
Pickup gauge wheelTwo std; two castor type opt
Pickup liftHydraulic stdmanual optional.
Windguard descriptionTine style std; Roller style opt.
Outer tine-to-tine width, standard60 in
Pickup working width68 in
Number of Tine Rows6
Optional pickup working width90 in
Outer tine-to-tine width, optional82 in

Wrapping System

Wrapping System specifications
Twine Ball Capacity—
Twine TypeAutomatic electric
Netwrap, meshwrap featureNetwrap available

Bale Chamber

Bale Chamber specifications
Bale chamberVariable chamber
Bale ejectorBale ramp spring-loaded; hydraulic opt.
Belt descriptionPremium Laced std; Endless opt.
Forming mechanism_Belts8
Forming mechanism_Rolls6
Tensioning methodSprings and two hydraulic cylinders

Years of Manufacture

Years of Manufacture specifications
First Entry Date8/27/2013
Manufacturing StatusCurrent
Revision Date9/29/2013- 4/30/2017

Power Take-Off (PTO)

Power Take-Off (PTO) specifications
PTO speed1,000 rpm
DriveMultiplate ship clutch

Sales Literature

Sales Literature specifications
Document Date7/1/2013
Document NumberHF-5150-13
Literature Date42,430
Literature NumberCIH03281601
