Case IH

SBX520

Baler

Bale Width
15 in
Overall Width
108 in
Overall Height
56 in
All balers

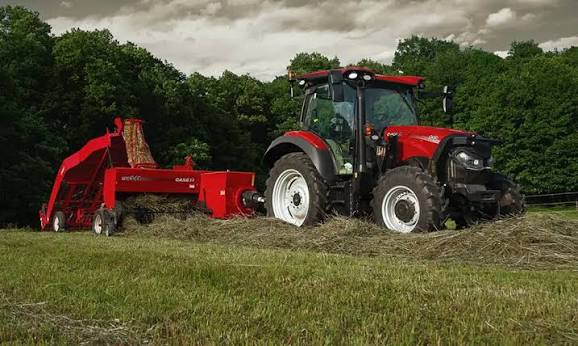

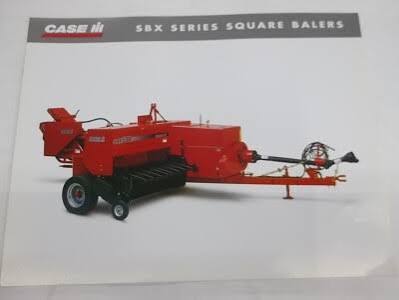

Case IH SBX520 Baler
1 / 5
Image 1 of 5
Image: southernfarmsupply.com

Specifications

21 data points

Dimensions

Dimensions specifications
Overall Length240 in
Overall Width108 in
Overall Height56 in
Weight3,137 lb
Tractor PTO Power Required35.0 hp

Bale Size

Bale Size specifications
Bale Width15 in
Bale Length - max52 in
Bale Height18 in
Bale Length - min12 in

Baler Pickup

Baler Pickup specifications
Number of Bars4
Tine to Tine Width65 in
Number of Tines88
Lift Typemanual

Feeding Chamber

Feeding Chamber specifications
Stuffer Type6 feeder tines on moving finger bar
Feed Opening283 in³

Plunger

Plunger specifications
SPM79
Stroke Length30 in
Bearing Type5 sealed ball
Density Controlsprings

Wrapping System

Wrapping System specifications
Twine Ball Capacity4
Twine Typeknotter
