Case IH

SBX530

Baler

Bale Width
15 in
Overall Width
110 in
Overall Height
69 in
All balers

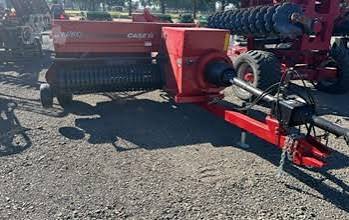

Case IH SBX530 Baler
1 / 5
Image 1 of 5
Image: tractorhouse.com

Specifications

21 data points

Dimensions

Dimensions specifications
Overall Length246 in
Overall Width110 in
Overall Height69 in
Weight3,393 lb
Tractor PTO Power Required62.0 hp

Bale Size

Bale Size specifications
Bale Width15 in
Bale Length - max52 in
Bale Height18 in
Bale Length - min12 in

Baler Pickup

Baler Pickup specifications
Number of Bars5
Tine to Tine Width65 in
Number of Tines110
Lift Typemanual lift crank

Feeding Chamber

Feeding Chamber specifications
Packer Typefork with 2 paired rotating fingers
Feed Opening283 in³

Plunger

Plunger specifications
SPM93
Stroke Length30 in
Bearing Type5 sealed ball
Density Controlsprings

Wrapping System

Wrapping System specifications
Twine Ball Capacity6
Twine Typeknotter
