Case IH

SBX540

Baler

Bale Width
15 in
Overall Width
120 in
Overall Height
70 in
All balers

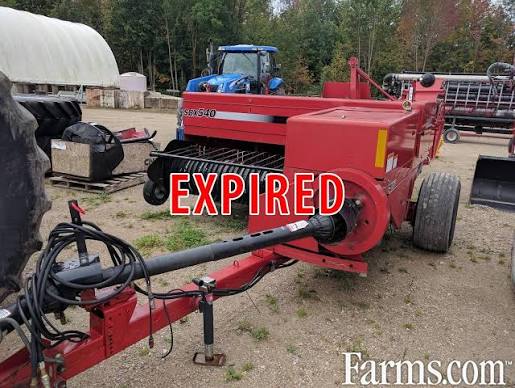

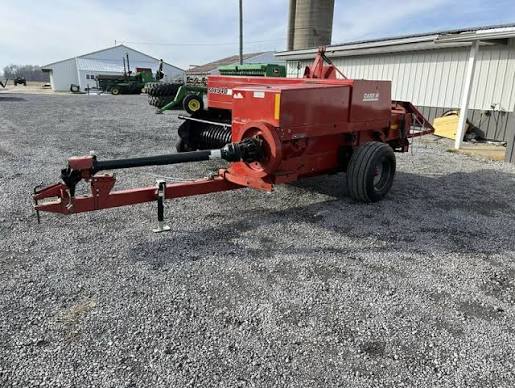

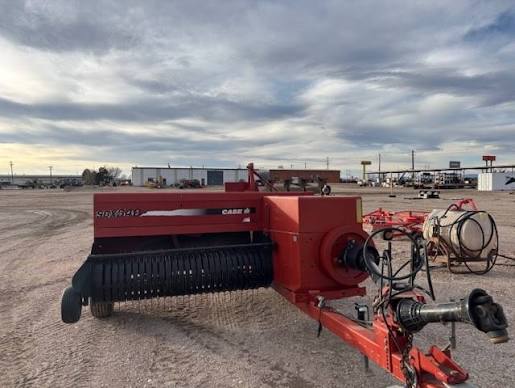

Case IH SBX540 Baler
1 / 5
Image 1 of 5
Image: tractorhouse.com

Specifications

22 data points

Dimensions

Dimensions specifications
Overall Length246 in
Overall Width120 in
Overall Height70 in
Weight3,570 lb
Tractor PTO Power Required75.0 hp

Bale Size

Bale Size specifications
Bale Width15 in
Bale Length - max52 in
Bale Height18 in
Bale Length - min12 in

Baler Pickup

Baler Pickup specifications
Number of Bars6
Tine to Tine Width76 in
Number of Tines156
Lift Typemanual lift crank

Feeding Chamber

Feeding Chamber specifications
Packer Typefork with 3 paired rotating fingers
Feed Opening283 in³

Plunger

Plunger specifications
SPM93
Stroke Length30 in
Bearing Type5 sealed ball
Density Controlsprings

Wrapping System

Wrapping System specifications
Twine Ball Capacity6
Twine Typetwine knotter
Wire Coil Capacity4
