Case IH

Tiger-mate II 18 ft

Field Cultivator

Min Working Width
222 in
Transport Width
166 in
Transport Height
150 in
All field cultivators

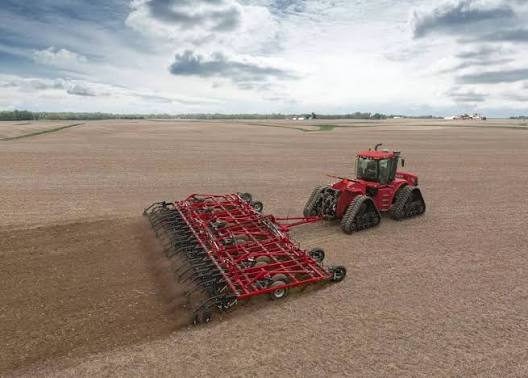

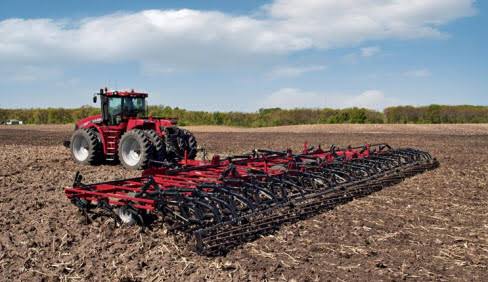

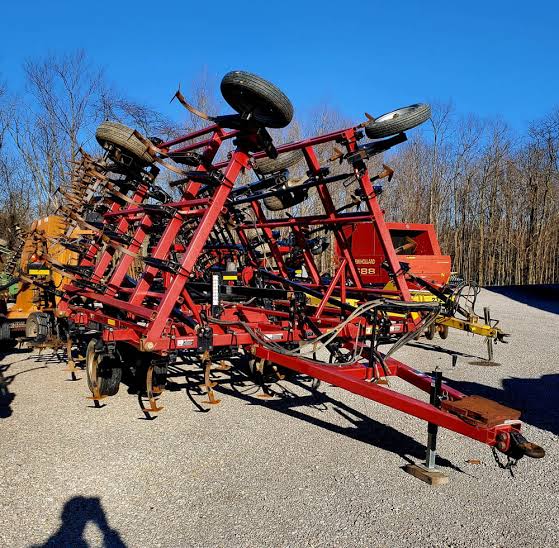

Case IH Tiger-mate II 18 ft Field Cultivator
1 / 5
Image 1 of 5
Image: tractorhouse.com

Specifications

18 data points

Operating Specifications

Operating Specifications specifications
Max Speed8.0 mph
Row/Rank Spacing30 in
Shank Trip Force150 lb
Shank Thickness1 in
Shank Width2 in

Dimensions

Dimensions specifications
Transport Width166 in
Transport Height150 in
PTO Power Required per Width Ft.5.0 hp

Frame

Frame specifications
Min Working Width222 in
Max Working Width342 in
Main Frame Width126 in
Frame Typesingle-fold

Harrow

Harrow specifications
Option 3 Type5-Bar Spike Tooth
Effective Spike/Tine Spacing2 in
Option 1 Type3-Bar Coil Tine
Spike/Tine Spacing8 in
Option 2 Type4-Bar tiger-tine
Spike/Tine Length11 in
