Case IH

WD1203

Mower Conditioner

Operating Weight w/o Attachment
10,950 lb
Max Speed
15.5 mph
Displacement
275 in³
Power
126.0 hp
All mower conditioners/windrowers

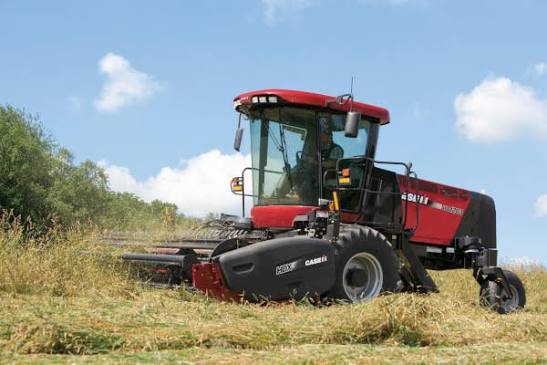

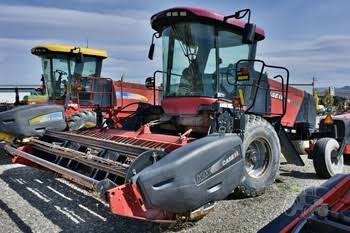

Case IH WD1203 Mower Conditioner
1 / 5
Image 1 of 5
Image: marketbook.com.na

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Operating Weight w/o Attachment10,950 lb
Fuel Capacity120.0 gal
Front Tire Size18.4R26
Rear Tire Size14Lx16.1 8PR
Alternator Supplied Amperage150 A
Operating Voltage12 V

Engine

Engine specifications
Displacement275 in³
Power126.0 hp
AspirationTurbo with charge air cooler
Power Measured @2,300 rpm
Number of Cylinders4
Engine MakeCase IH FPT
Emission Tier LevelTier 3
Alternator150 A
Fuel tank120.0 gal
Radiator Core typeOutside Rotary Wand
Max. horsepower126.0 hp

Dimensions

Dimensions specifications
Ground Clearance36 in
Height - Top of Cab133 in
Wheelbase134 in
Track Width—
Front Wheel Tread Width127 in
Rear Wheel tread Width - max120 in
Rear Wheel Tread Width - min90 in
Length w/ Header281 in
Crop clearance43 in
Length w/o Header199 in
Weight, w/o header10,948 lb
Track width (engine end)90 - 105 - 120 in (2286 - 2667 - 3048 mm)

Transmission

Transmission specifications
Max Speed15.5 mph
Final Drive Typeplanetary hubs
Transmission TypeDual speed hydrostatic
Number of Reverse Gears2
Number of Forward Gears2

Tires & Wheels

Tires & Wheels specifications
Drive Tires18.4x26 12PR R4
Tire Size Engine14Lx16.1 8PR
Cab SuspensionStandard

Speeds

Speeds specifications
Maximum road speed18.0 mph
Maximum field speed10.3 mph
