Case IH

WD1904

Mower Conditioner

Displacement
409 in³
Power
190.0 hp
All mower conditioners/windrowers

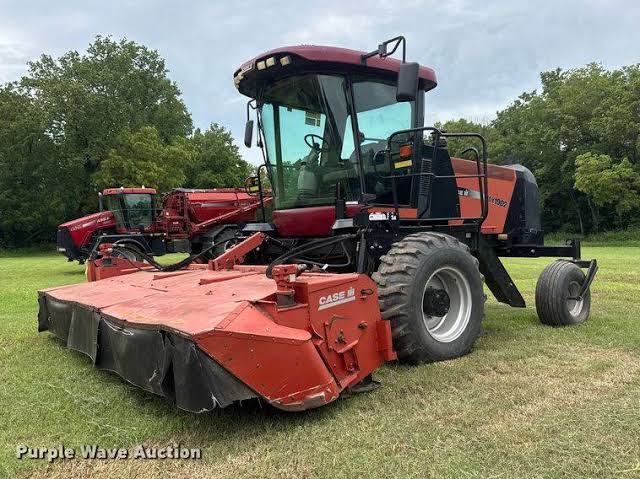

Case IH WD1904 Mower Conditioner
1 / 5
Image 1 of 5
Image: tractorhouse.com

Specifications

23 data points

Engine

Engine specifications
Displacement409 in³
Power190.0 hp
AspirationTurbo with charge air inter cooler
Number of Cylinders6
Engine MakeCase IH FPT
Emission Tier LevelTier 3
Alternator150 A
Fuel tank120.0 gal
Radiator Core typeRotary Wand and duct
Max. horsepower199.0 hp

Dimensions

Dimensions specifications
Height - Top of Cab135 in
Wheelbase144 in
Track Width—
Length w/ Header283 in
Crop clearance43 in
Length w/o Header200 in
Track width (engine end)90 105 or 120 in (2286 2667 or 3048mm)
Weight, w/o header11,226 lb

Transmission

Transmission specifications
Transmission TypeHydro static 2-speed Standard

Tires & Wheels

Tires & Wheels specifications
Drive Tires580/70 R26 R3
Cab SuspensionStandard
Tire Size Engine14Lx16.1 8PR or 16.5Lx16.1 8 PR

Speeds

Speeds specifications
Maximum road speed19.0 mph
