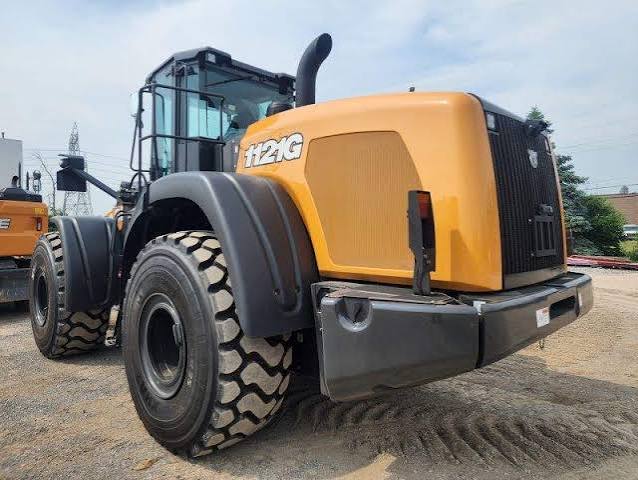

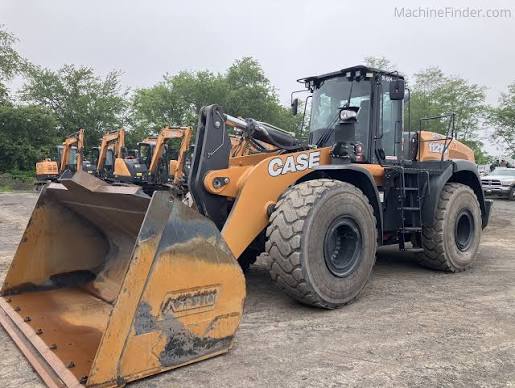

Case
1121G
- Operating Weight
- 61,650 lb
- Bucket Capacity - heaped
- 6.30 yd³
- Gross Power
- 347.0 hp
- Net Power
- 284.0 hp
1 / 5
Image 1 of 5
Specifications
53 data points
Operating Specifications
| Operating Weight | 61,650 lb |
|---|---|
| Fuel Capacity | 125.0 gal |
| Front Axle/Diff Fluid Capacity | 17.0 gal |
| Rear Axle/Diff Fluid Capacity | 17.0 gal |
| Cooling System Fluid Capacity | 15.1 gal |
| Transmission Fluid Capacity | 12.0 gal |
| Rated Bucket Capacity | 6.30 yd³ |
| DEF tank capacity | 24.0 gal |
Engine
| Engine Model | FPT F2CFE614F |
|---|---|
| Displacement | 531 in³ |
| Gross Power | 347.0 hp |
| Net Power | 284.0 hp |
| Number of Cylinders | 6 |
| Max Torque | 1,183 lb-ft |
| Make | Case |
| Torque Rise | 50.0 % |
| Alternator | 120 A |
| Rated Engine Speed | 2,100 rpm |
| Emissions | Tier 4 |
Weights
| Operating Weight | 61,650 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 50.2 gal/min |
|---|---|
| Pump Type | Piston |
| Steering pump type | Articulation |
| Maximum system pressure | 3,650 psi |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 142 in |
| Wheelbase | 141 in |
| Width Over Tires | 118 in |
| Reach at Max Lift and Dump | 81 in |
| Hinge Pin - Max Height | 175 in |
| Overall length (L/bucket) | 355 in |
| Turning Radius Outside Tires | 251 in |
| Dump height - fully raised, 45 degrees dump | 126 in |
| Dump reach @ full height, 45 degrees dump | 50 in |
| Overall width without bucket | 117 in |
| Bucket reach - fully raised, 45à ° dump | 50 in |
| Operating height - fully raised with spillgaurd | 242 in |
Transmission
| Max Speed - Forward | 23.2 mph |
|---|---|
| Transmission Type | Powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
| Differential lock | F: Open / R: Open |
Brakes & Steering
| Service brake | Wet Multi Disc |
|---|
Bucket
| Bucket Capacity - heaped | 6.30 yd³ |
|---|---|
| Dump Clearance at Max Raise | 121 in |
| Breakout Force | 49,930 lb |
General Specifications
| Operating Weight | 61,650 (27,964) — Starting 2024 Model Year |
|---|---|
| Bucket Capacity | 6.25 (4.8) — Starting 2024 Model Year |
| Engine type | Case/FPT — Starting 2019 Model Year |
| Engine Power | 329 (245) — Starting 2024 Model Year |
| Max Dump Height | 10.5 (3.2) — Starting 2024 Model Year |
Hydraulic cycle times (unloaded)
| Total cycle time | 10.7 s |
|---|
Performance
| Bucket breakout force, SAE | 45,052 lb |
|---|

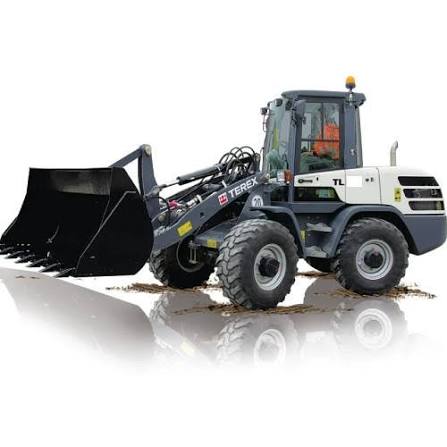

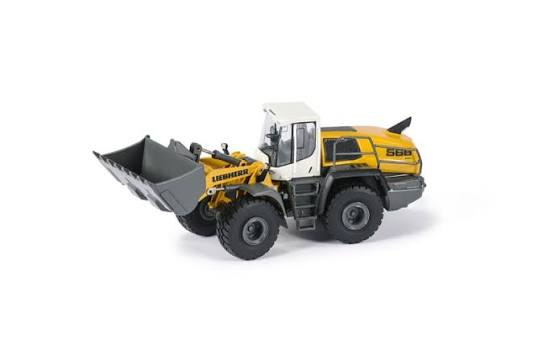

Comparable machines
