Case
Mitsubishi
BD2HS-HB1

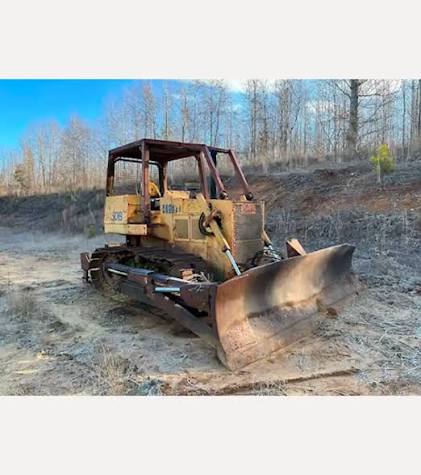

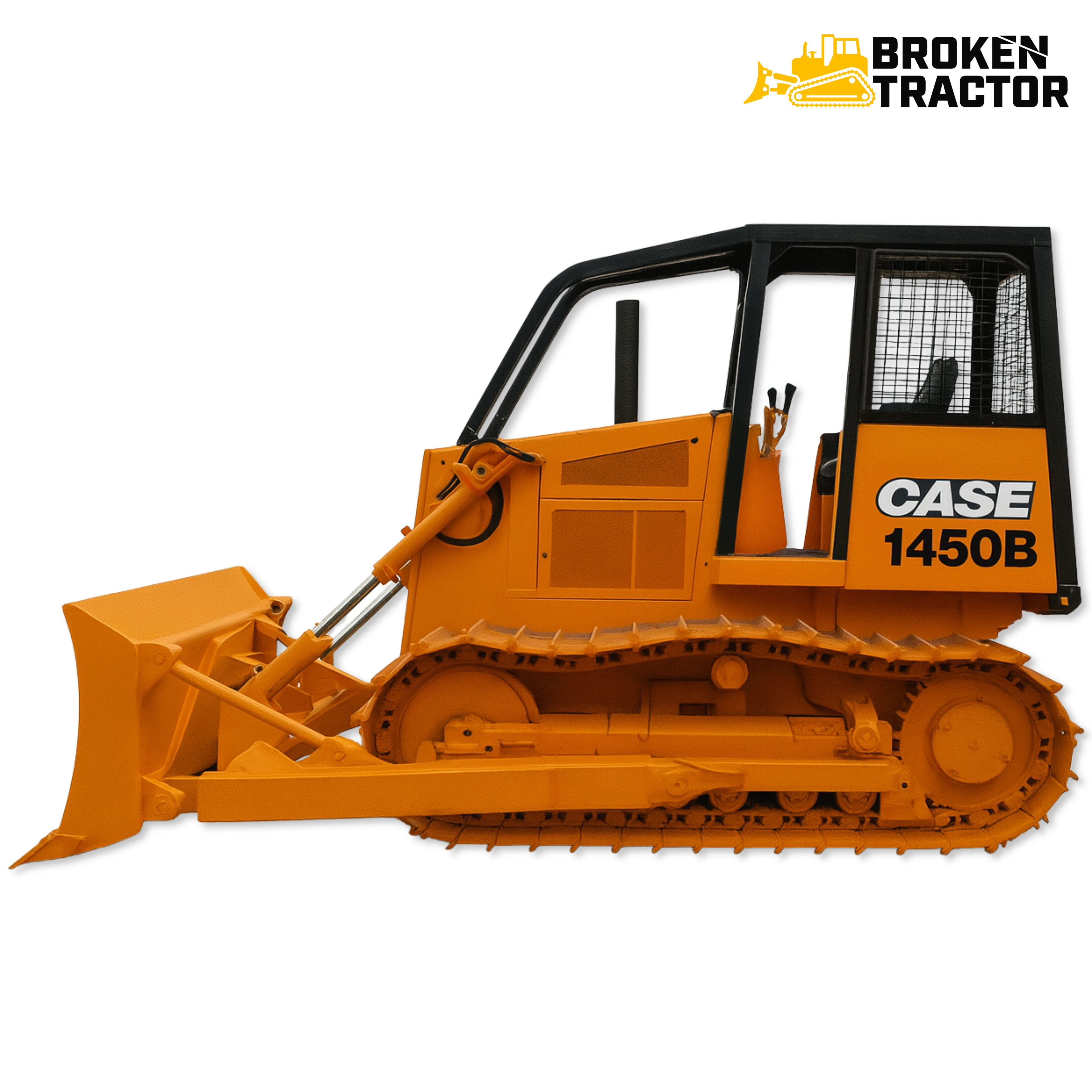

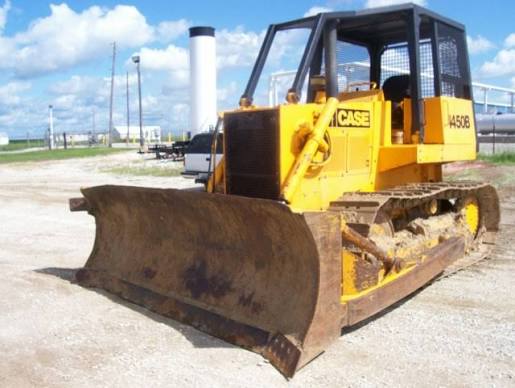

Crawler Dozer
17 specifications
1 / 5
Image 1 of 5
Specifications
26 data points
Operating Specifications
| Fuel Capacity | 65.0 gal |
|---|---|
| Cooling System Fluid Capacity | 14.1 gal |
| Final Drives Fluid Capacity | 6.3 gal |
| Engine Oil Capacity | 3.8 gal |
| Hydraulic Fluid Capacity | 17.6 gal |
Engine
| Engine Model | A504BDT |
|---|---|
| Displacement | 504 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 152.0 hp |
| Net Power | 140.0 hp |
| Number of Cylinders | 6 |
| Torque Measured @ | 1,525 rpm |
| Max Torque | 437 lb-ft |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 125 in |
| Length w/ Blade | 192 in |
| Length w/o Blade | 149 in |
Transmission
| Max Speed - Forward | 5.4 mph |
|---|---|
| Max Speed - Reverse | 6.5 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Undercarriage
| Track Gauge | 74 in |
|---|---|
| Number of Track Rollers per Side | 6 |
| Number of Shoes per Side | 36 |
| Number of Carrier Rollers per Side | 1 |
| Standard Shoe Size | 24 in |
