Case
Mitsubishi
BD2HS-HB1
Crawler Dozer
17 specifications
1 / 5

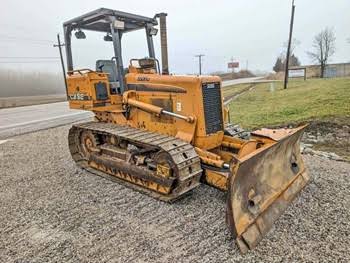

Image 1 of 5
Specifications
42 data points
Operating Specifications
| Operating Weight | 14,317 lb |
|---|---|
| Fuel Capacity | 30.5 gal |
| Cooling System Fluid Capacity | 4.2 gal |
| Final Drives Fluid Capacity | 1.5 gal |
| Engine Oil Capacity | 2.8 gal |
| Hydraulic Fluid Capacity | 10.3 gal |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 65 A |
Engine
| Engine Model | 4-390 |
|---|---|
| Displacement | 239 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 75.0 hp |
| Net Power | 67.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Natural |
| Torque Measured @ | 1,600 rpm |
| Max Torque | 181 lb-ft |
| Make | Case |
Hydraulic System
| Pump Flow Capacity | 21.9 gal/min |
|---|---|
| Relief Valve Pressure | 2,500 psi |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 102 in |
| Length of Track on Ground | 78 in |
| Width Over Tracks | 70 in |
| Length w/ Blade | 157 in |
Transmission
| Max Speed - Forward | 5.8 mph |
|---|---|
| Max Speed - Reverse | 6.4 mph |
| Transmission Type | Case constant -mesh modulated transmission |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Undercarriage
| Ground Pressure | 6 psi |
|---|---|
| Track Gauge | 65 in |
| Number of Track Rollers per Side | 6 |
| Number of Shoes per Side | 37 |
| Number of Carrier Rollers per Side | 1 |
| Standard Shoe Size | 16 in |
| Ground Contact Area | 2,496 in³ |
| Track Pitch | 6 in |
Standard Blade
| Width | 97 in |
|---|---|
| Height | 33 in |
| Capacity | 1.90 yd³ |
| Blade Angle (both directions) | 25 ° |
