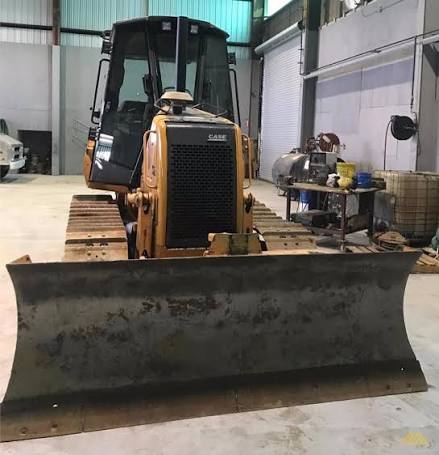

D3K LGP
Crawler Dozer
35 specifications
1 / 5
Image 1 of 5
Specifications
41 data points
Operating Specifications
| Operating Weight | 20,201 lb |
|---|---|
| Fuel Capacity | 50.1 gal |
| Cooling System Fluid Capacity | 6.0 gal |
| Final Drives Fluid Capacity | 3.8 gal |
| Engine Oil Capacity | 3.1 gal |
| Hydraulic Fluid Capacity | 20.0 gal |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 90 A |
Engine
| Engine Model | Family IV 445TA/E66 Tier III |
|---|---|
| Displacement | 275 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 90.0 hp |
| Net Power | 84.0 hp |
| Number of Cylinders | 4 |
| Torque Measured @ | 1,400 rpm |
| Max Torque | 288 lb-ft |
| Make | Case |
Hydraulic System
| Pump Flow Capacity | 20.3 gal/min |
|---|---|
| Relief Valve Pressure | 3,000 psi |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 109 in |
| Length of Track on Ground | 90 in |
| Width Over Tracks | 98 in |
| Length w/ Blade | 170 in |
Transmission
| Max Speed - Forward | 6.1 mph |
|---|---|
| Max Speed - Reverse | 6.1 mph |
| Transmission Type | hydrostatic |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Undercarriage
| Ground Pressure | 4 psi |
|---|---|
| Track Gauge | 71 in |
| Number of Track Rollers per Side | 6 |
| Number of Shoes per Side | 39 |
| Number of Carrier Rollers per Side | 1 |
| Standard Shoe Size | 28 in |
| Ground Contact Area | 4,991 in³ |
| Track Pitch | 7 in |
Standard Blade
| Width | 125 in |
|---|---|
| Height | 36 in |
| Capacity | 2.69 yd³ |
| Blade Angle (both directions) | 25 ° |
