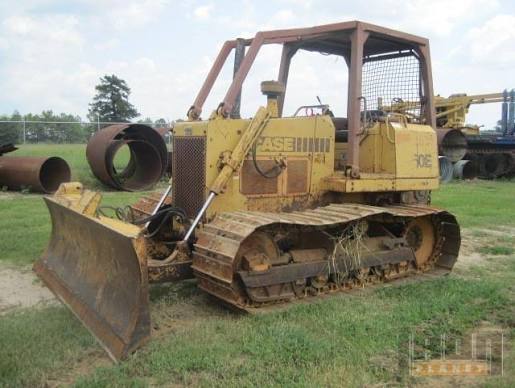

Case
Mitsubishi
BD2HS-HB1
Crawler Dozer
17 specifications
1 / 5
Image 1 of 5
Specifications
31 data points
Operating Specifications
| Fuel Capacity | 47.0 gal |
|---|---|
| Cooling System Fluid Capacity | 5.0 gal |
| Final Drives Fluid Capacity | 1.9 gal |
| Engine Oil Capacity | 4.0 gal |
| Hydraulic Fluid Capacity | 12.0 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 45 A |
Engine
| Engine Model | 6-590/6T-590 |
|---|---|
| Displacement | 359 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 99.0 hp |
| Net Power | 89.0 hp |
| Number of Cylinders | 6 |
| Torque Measured @ | 1,000 rpm |
| Max Torque | 265 lb-ft |
Hydraulic System
| Pump Flow Capacity | 24.0 gal/min |
|---|---|
| Relief Valve Pressure | 2,200 psi |
Dimensions
| Height - Top of Cab | 107 in |
|---|---|
| Width Over Tracks | 73 in |
| Length w/ Blade | 167 in |
Transmission
| Max Speed - Forward | 5.6 mph |
|---|---|
| Max Speed - Reverse | 6.1 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Track Gauge | 60 in |
| Number of Track Rollers per Side | 6 |
| Number of Shoes per Side | 38 |
| Number of Carrier Rollers per Side | 1 |
| Standard Shoe Size | 18 in |
| Ground Contact Area | 708,353 in³ |

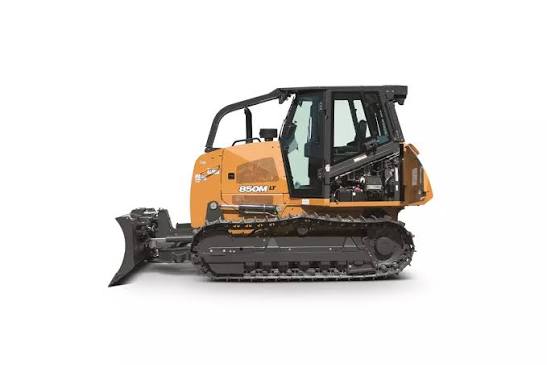

Comparable machines
