CaterpillarBoxer
427
Compact Track Loader
19 specifications
1 / 5

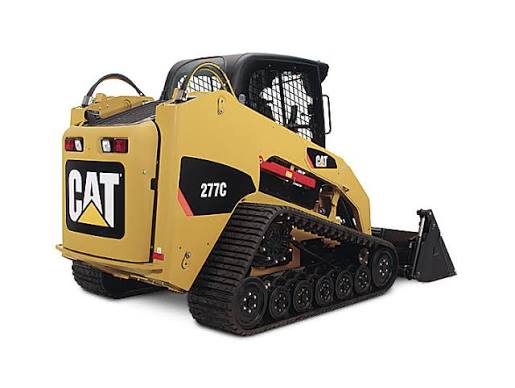

Image 1 of 5
Specifications
52 data points
Operating Specifications
| Breakout Force - Tilt Cylinder | 7,308 lb |
|---|---|
| Tipping Load | 6,675 lb |
| Rated Operating Capacities - 35% Tipping Load | 2,337 lb |
| Rated Operating Capacities - 50% Tipping Load | 3,200 lb |
| Ground Contact Area | 2,542 in³ |
| Ground Pressure | 4 psi |
| Rated Operating Capacity with Optional Counterweight | 3,571 lb |
Engine
| Engine Model | Cat C3.4 DIT |
|---|---|
| Displacement | 201 in³ |
| Gross Power | 74.0 hp |
| Net Power | 73.0 hp |
| Stroke | 5 in |
| Bore | 4 in |
| Net Power - SAE 1349 | 73.0 hp |
Hydraulic System
| Loader Hydraulic Pressure | 3,335 psi |
|---|---|
| Hydraulic Power | 42.8 hp |
| Loader Hydraulic Flow | 22.0 gal/min |
| Hydraulic Flow (1) | Standard |
| Hydraulic Flow (2) | High Flow XPS |
| Maximum Loader Hydraulic Flow | 33.0 gal/min |
| Maximum Loader Hydraulic Pressure | 4,061 psi |
Dimensions
| Ground Clearance | 9 in |
|---|---|
| Height - Top of Cab | 84 in |
| Length with Bucket on Ground | 145 in |
| Length - without Bucket | 117 in |
| Bucket Pin Height - Maximum Lift | 124 in |
| Maximum Overall Height | 157 in |
| Clearance at Maximum Lift and Dump | 96 in |
| Bucket Pin Height - Carry Position | 8 in |
| Turn Radius from Center - Coupler | 59 in |
| Turn Radius from Center - Bucket | 92 in |
| Turn Radius from Center - Rear | 64 in |
| Maximum Reach - With Arms Parallel | 55 in |
| Rack Back Angle - Maximum Height | 85 ° |
| Departure Angle | 42 ° |
| Maximum Dump Angle | 40 ° |
| Length - Track on Ground | 71 in |
| Overall Length - Track | 90 in |
| Reach at Maximum Lift/Dump | 24 in |
| Vehicle Width | 78 in |
Cab & Operator
| ROPS | SAE J1040 MAY94 ISO 3471:1994 |
|---|---|
| FOPS | SAE J1043 SEPT87 ISO 3449:1992 Level I |
| FOPS Level II | SAE J231 JAN81 ISO 3449:1992 Level II |
Service Refill Capacities
| Cooling System | 3.7 gal |
|---|---|
| Hydraulic Tank | 11.0 gal |
| Fuel Tank | 26.0 gal |
| Engine Crankcase | 2.6 gal |
| Hydraulic System | 15.0 gal |
Power Train
| Travel Speed Forward | 5.6 mph |
|---|---|
| Travel Speed Reverse | 5.6 mph |
| Travel Speed Forward - 2-Speed Option | 9.3 mph |
| Travel Speed Reverse - 2-Speed Option | 9.3 mph |
