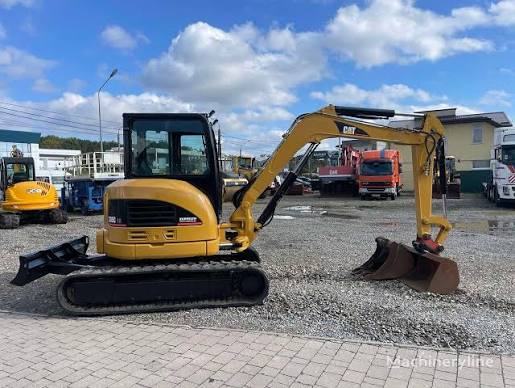

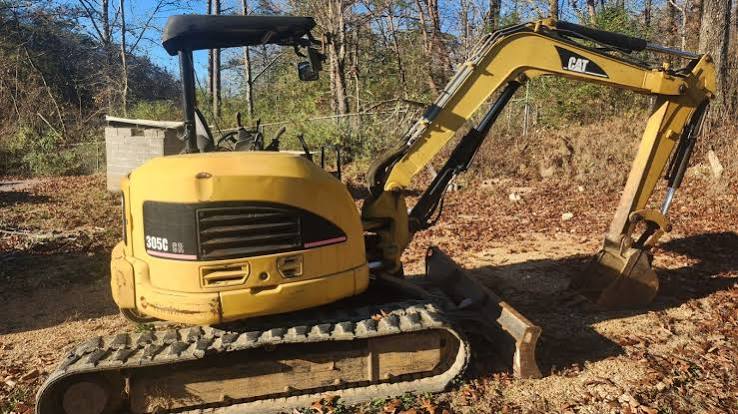

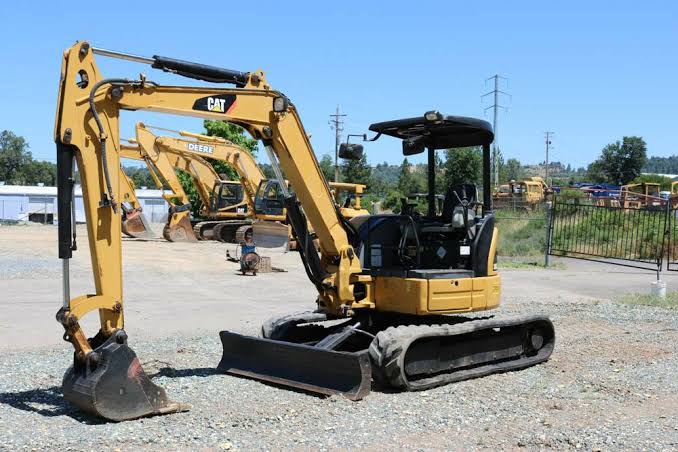

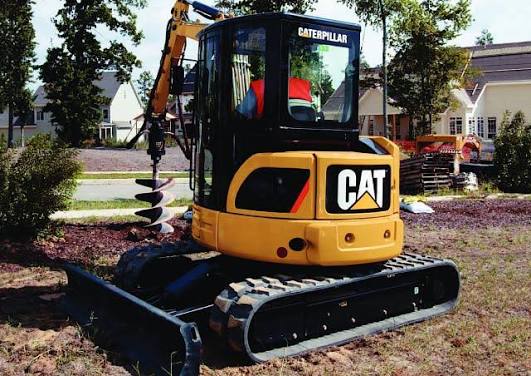

305C CR

Specifications

71 data points

Operating Specifications specifications
Operating Weight	11,725 lb
Fuel Capacity	19.0 gal
Hydraulic Pump Flow Capacity	34.3 gal/min
Hydraulic System Fluid Capacity	20.6 gal
Hydraulic System Relief Valve Pressure	3,553 psi
Operating Voltage	12 V
Alternator Supplied Amperage	50 A
Engine Oil Capacity	1.9 gal
Cooling System Fluid Capacity	2.9 gal

Weights specifications
Operating Weight - With Cab	11,725 lb
Operating Weight	11,464 lb

Hydraulic System specifications
Operating Pressure - Equipment	3,553 psi
Operating Pressure - Swing	2,669 psi
Operating Pressure - Travel	3,553 psi
Digging Force - Bucket	11,443 lb
Digging Force - Stick - Standard	6,497 lb
Digging Force - Stick - Long	5,575 lb

Dimensions specifications
Ground Clearance	15 in
Height - Top of Cab	100 in
Tail Swing Radius	40 in
Width to Outside of Tracks	78 in
Removal Counterweight Clearance	24 in
Transport Width	78 in
Shipping Height	101 in
Shipping Length	210 in
Track Shoe Width	17 in
Maximum Digging Depth - Standard Stick	137 in
Height - Over Cab	101 in
Maximum Reach - Ground Level - Standard Stick	223 in
Maximum Dump Height - Standard Stick	150 in
Maximum Vertical Dig Depth - Standard Stick	115 in
Maximum Dump Height - Long Stick	159 in
Swing Radius - Rear	42 in
Maximum Cutting Height - Standard Stick	212 in
Maximum Cutting Height - Long Stick	222 in
Maximum Vertical Dig Depth - Long Stick	154 in
Length - Center of Rollers	222 in

Boom/Stick Excavator Option 1 specifications
Max Digging Depth	138 in
Max Reach Along Ground	223 in
Max Vertical Wall Digging Depth	100 in
Max Loading Height	150 in
Shipping Length of Unit	210 in
Max Cutting Height	211 in
Shipping Height of Unit	101 in

Swing Mechanism specifications
Swing Speed	9 rpm

Boom/Stick Excavator Option 2 specifications
Max Digging Depth	154 in
Max Cutting Height	222 in
Max Loading Height	159 in
Max Vertical Wall Digging Depth	115 in
Max Reach Along Ground	239 in
Shipping Height of Unit	101 in
Shipping Length of Unit	215 in
