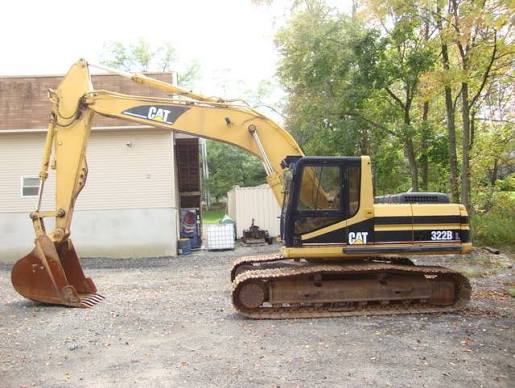

Caterpillar
322B L
- Operating Weight
- 50,177 lb
- Max Digging Depth
- 265 in
- Max Digging Depth
- 247 in
- Net Power
- 153.0 hp
1 / 5
Image 1 of 5
Specifications
70 data points
Operating Specifications
| Operating Weight | 50,177 lb |
|---|---|
| Fuel Capacity | 89.9 gal |
| Hydraulic Pump Flow Capacity | 108.4 gal/min |
| Hydraulic System Fluid Capacity | 70.1 gal |
| Hydraulic System Relief Valve Pressure | 4,980 psi |
| Engine Oil Capacity | 5.7 gal |
| Cooling System Fluid Capacity | 8.4 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 2.2 gal |
| Alternator Supplied Amperage | 55 A |
Engine
| Engine Model | Cat 3116TA |
|---|---|
| Displacement | 403 in³ |
| Power Measured @ | 1,950 rpm |
| Gross Power | 161.0 hp |
| Net Power | 153.0 hp |
| Aspiration | Turbocharged and Aftercooled |
| Bore | 4 in |
| Stroke | 5 in |
| Net Power - ISO 9249 | 153.0 hp |
| Net Power - SAE J1349 | 153.0 hp |
| Net Power - EEC 80/1269 | 153.0 hp |
Weights
| Operating Weight - Standard Undercarriage | 50,160 lb |
|---|
Hydraulic System
| Maximum Pressure - Swing | 3,980 psi |
|---|---|
| Maximum Pressure - Travel | 4,980 psi |
| Boom Cylinder - Bore | 5 in |
| Boom Cylinder - Stroke | 51 in |
| Main Implement System - Maximum Flow (2x) | 54.2 gal/min |
| Maximum Pressure - Equipment | 4,980 psi |
| Pilot System - Maximum Flow | 10.3 gal/min |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 118 in |
| Length of Track on Ground | 151 in |
| Tail Swing Radius | 115 in |
| Width to Outside of Tracks | 126 in |
| Removal Counterweight Clearance | 43 in |
Undercarriage
| Track Gauge | 102 in |
|---|---|
| Max Travel Speed | 3.5 mph |
| Shoe Size | 32 in |
| Drawbar Pull | 43,613 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 265 in |
|---|---|
| Max Reach Along Ground | 395 in |
| Max Loading Height | 265 in |
| Max Vertical Wall Digging Depth | 226 in |
| Max Cutting Height | 381 in |
| Shipping Length of Unit | 393 in |
| Shipping Height of Unit | 124 in |
Bucket
| Reference Bucket Capacity | 1.40 yd³ |
|---|---|
| Maximum Bucket Capacity | 2.00 yd³ |
| Minimum Bucket Capacity | 1.29 yd³ |
Drive System
| Maximum Drawbar Pull | 43,612 lb |
|---|
Service Refill Capacities
| Cooling System | 8.3 gal |
|---|---|
| Hydraulic System - Including Tank | 70.0 gal |
| Final Drive - Each | 2.6 gal |
| Engine Oil | 5.7 gal |
| Fuel Tank Capacity | 90.0 gal |
| Swing Drive | 2.6 gal |
Boom/Stick Excavator Option 2
| Max Digging Depth | 247 in |
|---|---|
| Max Vertical Wall Digging Depth | 207 in |
| Max Cutting Height | 374 in |
| Max Loading Height | 258 in |
| Max Reach Along Ground | 378 in |
| Shipping Length of Unit | 395 in |
| Shipping Height of Unit | 130 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 233 in |
|---|---|
| Max Cutting Height | 361 in |
| Max Loading Height | 236 in |
| Max Vertical Wall Digging Depth | 204 in |
| Max Reach Along Ground | 360 in |
| Shipping Length of Unit | 371 in |
| Shipping Height of Unit | 137 in |
