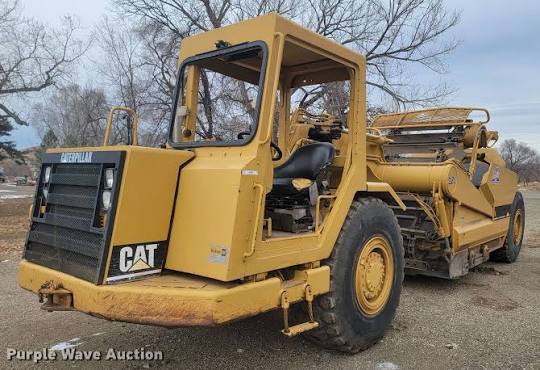

Specifications
84 data points
Operating Specifications
| Tire Size | 23.5R25 |
|---|---|
| Cooling System Fluid Capacity | 10.2 gal |
| Engine Oil Fluid Capacity | 5.3 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 50 A |
| Wheel Coolant Fluid Capacity - each | 1.6 gal |
| Engine Oil Capacity | 5.3 gal |
Engine
| Displacement | 403 in³ |
|---|---|
| Net Power | 175.0 hp |
| Bore | 4 in |
| Stroke | 5 in |
| Tractor Engine | Cat 3116 |
| Flywheel Power - Tractor/Scraper | 131 kW (175) |
| Gross Power - Gears 1-2 | 187.0 hp |
| Net Power - Gears 1-2 | 175.0 hp |
| Net Power - Gears 3-8 | 175.0 hp |
Weights
| Total Operating - Loaded | 60,050 lb |
|---|---|
| Front Axle | 21,100 lb |
| Front Axle Weight - Loaded | 29,438 lb |
| Rear Axle | 12,550 lb |
| Rear Axle - Weight - Loaded | 30,612 lb |
Hydraulic System
| Bowl Cylinder Bore | 4 in |
|---|---|
| Bowl Cylinder Stroke | 17 in |
| Ejector Cylinder Stroke | 36 in |
| Ejector Cylinder Bore | 4 in |
| Scraper Circuit | 26.9 gal/min |
| Steering Circuit | 21.9 gal/min |
Dimensions
| Wheelbase | 247 in |
|---|---|
| Overall Height | 122 in |
| Height to Top of Suspended Cab | 122 in |
| Wheel Base | 247 in |
| Tractor Ground Clearance | 23 in |
| Width - Outside Rear Tires | 96 in |
| Height - Overall Shipping | 122 in |
| Height - Scraper Blade Maximum | 23 in |
| Length - Overall Machine | 399 in |
| Rear Axle - Rear of Machine | 48 in |
| Front of Tractor to Front Axle | 98 in |
| Width - Overall Machine | 96 in |
| Width - Rear Tire Center Lines | 71 in |
Transmission
| Max Speed - Reverse | 2.2 mph |
|---|---|
| Number of Forward Gears | 6 |
| Number of Reverse Gears | 1 |
| 1 Forward | 2.2 mph |
| 2 Forward | 3.6 mph |
| 3 Forward | 5.7 mph |
| 4 Forward | 8.9 mph |
| 5 Forward | 15.1 mph |
| 6 Forward | 21.8 mph |
| Reverse | 2.2 mph |
| Transmission Type | powershift manual transmission |
| Top Speed - Loaded | 21.8 mph |
Service Refill Capacities
| Cooling System | 10.2 gal |
|---|---|
| Fuel Tank | 66.0 gal |
| Final Drive - Each | 1.5 gal |
| Crankcase | 5.3 gal |
| Transmission | 9.2 gal |
| Differential | 5.0 gal |
| Hydraulic Reservoir | 26.4 gal |
Bowl
| Heaped Capacity | 11.00 yd³ |
|---|---|
| Width of Cut | 94 in |
| Struck Capacity | 8.89 yd³ |
Scraper Engine
| Displacement | 403 in³ |
|---|
Tractor Engine
| Net Power | 175.0 hp |
|---|---|
| Gross Power | 187.0 hp |
| Displacement | 403 in³ |
| Make | Caterpillar |
| Power Measured @ | 2,300 rpm |
| Aspiration | turbocharged |
Scraper Bowl
| Rated Load | 26,400 lb |
|---|---|
| Capacity - Struck | 8.89 yd³ |
| Depth of Spread - Maximum | 15 in |
| Ground Clearance - Maximum | 18 in |
| Depth of Cut - Maximum | 6 in |
| Scraper Capacity - Heaped | 11.00 yd³ |
| Width - Cut - To Router Bits | 8 in |
Elevator
| Number of Flights | 15 |
|---|---|
| Length - Flights | 66 in |
| Length - Overall | 96 in |
| Spacing of Flights | 16 in |
| Width - Flight Face | 7 in |
| Length of Flights | 69 in |
| Max Working Speed | 3.2 mph |
| Width of Flight Face | 7 in |
