Caterpillar

910E

Wheel Loader

Operating Weight
15,979 lb
Bucket Capacity - heaped
1.40 yd³
Gross Power
81.0 hp
Net Power
75.0 hp
All wheel loaders

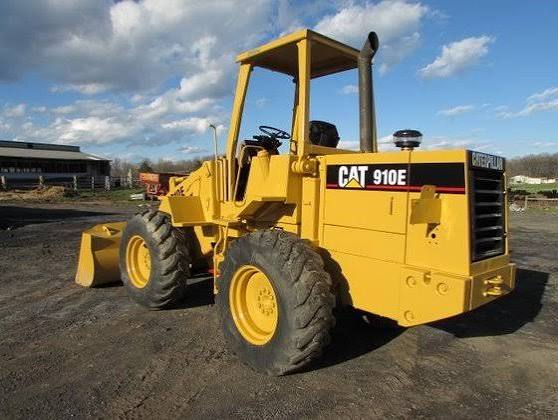

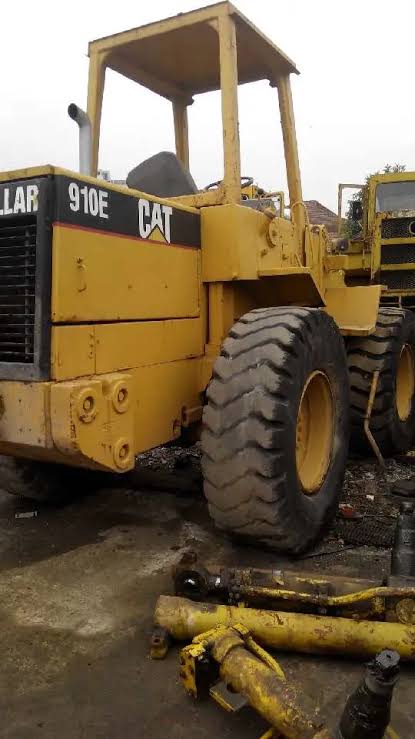

Caterpillar 910E Wheel Loader
1 / 5
Image 1 of 5
Image: alsakha.com

Specifications

43 data points

Operating Specifications

Operating Specifications specifications
Operating Weight15,979 lb
Fuel Capacity25.7 gal
Tire Size15.5x25 8 PR(L-2)
Hydraulic System Fluid Capacity18.5 gal
Static Tipping Weight10,492 lb
Operating Voltage24 V
Turning Radius190 in
Engine Oil Fluid Capacity3.0 gal
Rear Axle Oscillation22 °
Alternator Supplied Amperage55 A
Front Axle/Diff Fluid Capacity4.8 gal
Rear Axle/Diff Fluid Capacity4.8 gal
Cooling System Fluid Capacity8.0 gal
Transmission Fluid Capacity6.1 gal

Engine

Engine specifications
Engine Model3114
Displacement269 in³
Power Measured @2,400 rpm
Gross Power81.0 hp
Net Power75.0 hp
Number of Cylinders4
Aspirationturbocharged

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity29.6 gal/min
Raise Time5.3 s
Lower Time3.2 s
Dump Time1.3 s
Relief Valve Setting2,204 psi

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab119 in
Wheelbase93 in
Width Over Tires85 in
Reach at Max Lift and Dump41 in
Length with Bucket on Ground235 in
Hinge Pin - Max Height132 in

Transmission

Transmission specifications
Max Speed - Forward22.4 mph
Max Speed - Reverse15.0 mph
Transmission Typepowershift
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped1.40 yd³
Bucket Capacity - struck1.10 yd³
Dump Clearance at Max Raise102 in
Breakout Force16,626 lb
Bucket Width93 in
