Caterpillar
Leeboy
8616C
Asphalt Paver
6 specifications

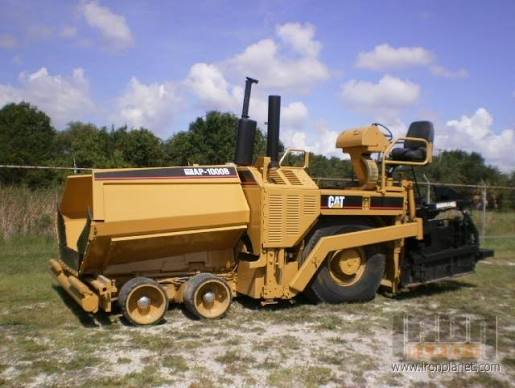

Caterpillar
AP1000B
- Operating Weight w/ Screed
- 35,693 lb
- Paving Width - max
- 361 in
- Gross Power
- 174.0 hp
- Length w/ Screed
- 268 in
1 / 5
Image 1 of 5
Specifications
18 data points
Operating Specifications
| Operating Weight w/ Screed | 35,693 lb |
|---|---|
| Fuel Capacity | 70.1 gal |
| Hydraulic System Fluid Capacity | 50.0 gal |
| Cooling System Fluid Capacity | 9.8 gal |
Engine
| Engine Model | 3116TA |
|---|---|
| Displacement | 403 in³ |
| Gross Power | 174.0 hp |
| Number of Cylinders | 6 |
Dimensions
| Wheelbase | 115 in |
|---|---|
| Transport Width | 120 in |
| Transport Height | 109 in |
| Tire Size | 16x22 Solid Rubber 18x25-16 PR sand rib |
| Length w/ Screed | 268 in |
Hopper/Paver
| Paving Width - max | 361 in |
|---|---|
| Paving Speed - max | 4.3 mph |
| Hopper Capacity | 8 lb |
| Travel Speed - max | 14.7 mph |
| Auger Diameter | 16 in |
