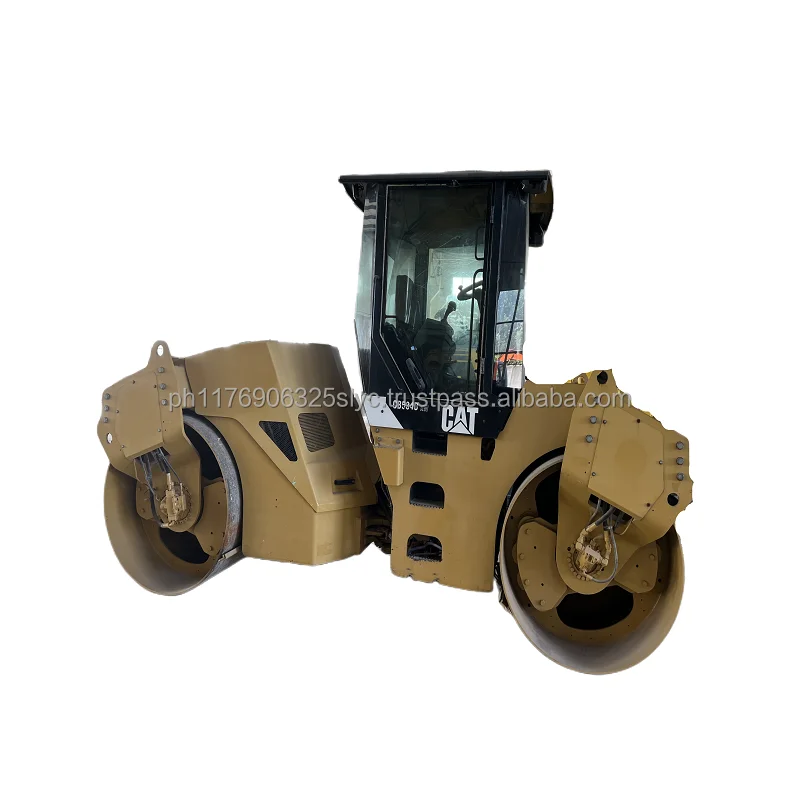

Caterpillar CB534D XW Smooth Drum Roller
1 / 5
Image 1 of 5
Image: alibaba.com

Specifications

55 data points

Operating Specifications

Operating Specifications specifications
Operating Weight25,882 lb
Max Speed8.1 mph
Fuel Capacity57.9 gal
Operating Width86 in
Operating Voltage12 V
Hydraulic System Fluid Capacity15.9 gal
Engine Oil Capacity2.4 gal
Alternator Supplied Amperage80 A
Cooling System Fluid Capacity5.3 gal
Travel Speed - Maximum8.0 mph
Ground Clearance12 in
Curb Clearance35 in
Turning Radius - Inside Drum Edge1,884 in
Turning Radius - Outside Drum Edge236 in

Engine

Engine specifications
Displacement269 in³
Net Power124.8 hp
Aspirationturbocharged
MakeCaterpillar
Stroke5 in
Bore4 in
Net Power - ISO 9249125.0 hp

Weights

Weights specifications
Operating Weight - With ROPS/FOPS24,860 lb
Operating Weight - At Rear Drum with ROPS/FOPS12,322 lb
Operating Weight - At Front Drum with ROPS/FOPS12,595 lb

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab122 in
Wheelbase12 in
Overall Width86 in
Height - Top of ROPS/FOPS123 in
Wheel Base144 in
Compaction Width79 in
Height - Steering Wheel104 in

Drum

Drum specifications
Drum Diameter51 in
Vibration Frequency 142 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High20,907 lb
Vibration Frequency 242 vpm
Static Linear Load35 lb-ft
Centrifugal Force - Low8,093 lb
Nominal Amplitude - Low0 in
Nominal Amplitude - Med0 in
Centrifugal Force - MEd17,310 lb
Nominal Amplitude - Med High0 in
Centrifugal Force - Med High21,806 lb
Centrifugal Force - Med Low13,039 lb
Nominal Amplitude - Med Low0 in

Service Refill Capacities

Service Refill Capacities specifications
Fuel Tank Capacity58.0 gal
Water Spray Tank Capacity290.0 gal

Vibratory System

Vibratory System specifications
Nominal Amplitude - High0 in
Centrifugal Force per Drum - Maximum25,208 lb
Centrifugal Force per Drum - Minimum7,922 lb
Vibration SelectionIndependent per drum
Nominal Amplitude - Low0 in
Drum Diameter51 in
Eccentric Weight DriveHydraulic direct auto reversing
