Caterpillar
Mitsubishi
BD2HS-HB1
Crawler Dozer
17 specifications
1 / 5

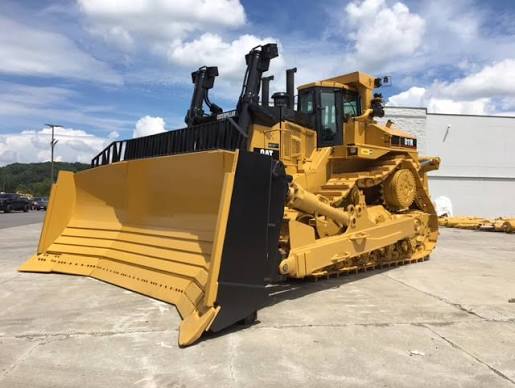

Image 1 of 5
Specifications
26 data points
Operating Specifications
| Fuel Capacity | 388.6 gal |
|---|---|
| Cooling System Fluid Capacity | 61.1 gal |
| Final Drives Fluid Capacity | 8.0 gal |
| Engine Oil Capacity | 28.1 gal |
| Hydraulic Fluid Capacity | 54.2 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 100 A |
Engine
| Engine Model | 3508B |
|---|---|
| Power Measured @ | 1,800 rpm |
| Gross Power | 915.0 hp |
| Net Power | 850.0 hp |
| Number of Cylinders | 8 |
| Aspiration | Turbocharged and Aftercooled |
Dimensions
| Ground Clearance | 25 in |
|---|---|
| Height - Top of Cab | 183 in |
| Length of Track on Ground | 175 in |
| Width Over Tracks | 143 in |
| Length w/o Blade | 244 in |
Transmission
| Max Speed - Forward | 7.3 mph |
|---|---|
| Max Speed - Reverse | 8.7 mph |
| Transmission Type | Power Shift |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Undercarriage
| Number of Track Rollers per Side | 8 |
|---|---|
| Number of Shoes per Side | 41 |
| Track Pitch | 13 in |
