Caterpillar

D4E LGP

Crawler Dozer

Operating Weight
22,520 lb
Max Speed - Forward
5.8 mph
Gross Power
80.5 hp
All crawler dozers

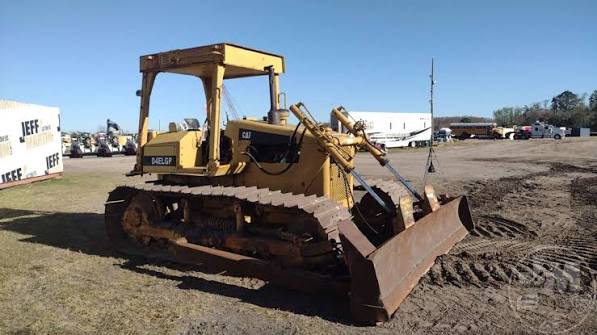

Caterpillar D4E LGP Crawler Dozer
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight22,520 lb
Fuel Capacity51.0 gal

Engine

Engine specifications
Engine Model3304
Displacement427 in³
Gross Power80.5 hp

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab107 in
Length of Track on Ground88 in
Width Over Tracks101 in
Length w/ Blade167 in
Length w/o Blade126 in

Transmission

Transmission specifications
Max Speed - Forward5.8 mph
Max Speed - Reverse6.8 mph
Transmission Typepowershift
Number of Forward Gears3
Number of Reverse Gears3

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge71 in
Number of Track Rollers per Side6
Standard Shoe Size30 in
Ground Contact Area5,224 in³

Standard Blade

Standard Blade specifications
Width121 in
Capacity2.30 yd³
