Caterpillar

D4H II

Crawler Dozer

Operating Weight
22,597 lb
Max Speed - Forward
6.4 mph
Gross Power
99.0 hp
Net Power
95.0 hp
All crawler dozers

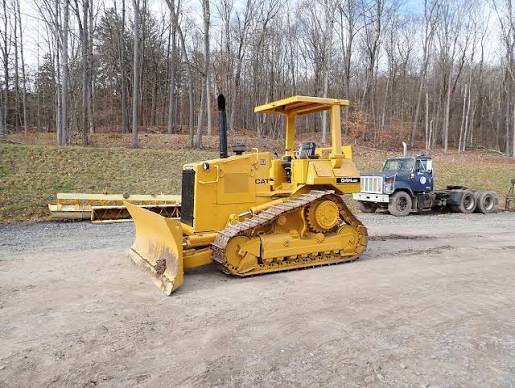

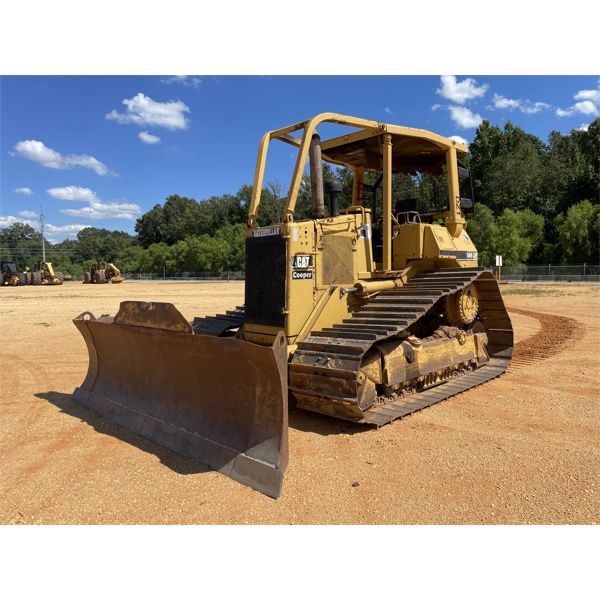

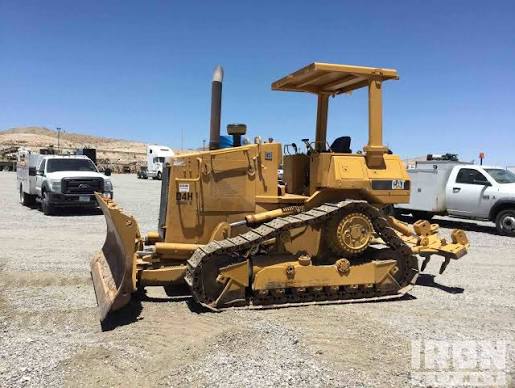

Caterpillar D4H II Crawler Dozer
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

36 data points

Operating Specifications

Operating Specifications specifications
Operating Weight22,597 lb
Fuel Capacity44.2 gal
Cooling System Fluid Capacity7.2 gal
Final Drives Fluid Capacity1.6 gal
Engine Oil Capacity4.0 gal
Hydraulic Fluid Capacity17.8 gal

Engine

Engine specifications
Engine Model3204
Displacement317 in³
Power Measured @2,200 rpm
Gross Power99.0 hp
Net Power95.0 hp
Number of Cylinders4
Aspirationturbocharged

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity25.0 gal/min
Relief Valve Pressure2,700 psi
Pump TypeVariable-displacement piston pump senses implement load

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab118 in
Length of Track on Ground89 in
Width Over Tracks84 in
Length w/ Blade168 in
Length w/o Blade135 in

Transmission

Transmission specifications
Max Speed - Forward6.4 mph
Max Speed - Reverse7.6 mph
Transmission Typeplanetary power shift
Number of Forward Gears3
Number of Reverse Gears3

Undercarriage

Undercarriage specifications
Ground Pressure7 psi
Track Gauge67 in
Number of Track Rollers per Side7
Number of Shoes per Side39
Standard Shoe Size18 in
Ground Contact Area3,168 in³

Standard Blade

Standard Blade specifications
Width102 in
Height38 in
Capacity2.50 yd³
