Caterpillar

D5B SA

Crawler Dozer

Operating Weight
23,301 lb
Max Speed - Forward
5.6 mph
Gross Power
119.4 hp
All crawler dozers

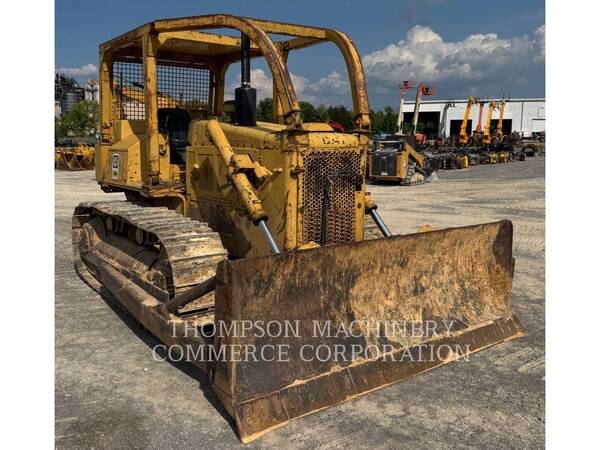

Caterpillar D5B SA Crawler Dozer
1 / 5
Image 1 of 5
Image: surplusrecord.com

Specifications

19 data points

Operating Specifications

Operating Specifications specifications
Operating Weight23,301 lb
Fuel Capacity78.0 gal

Engine

Engine specifications
Engine Model3306
Displacement635 in³
Gross Power119.4 hp

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab109 in
Length of Track on Ground86 in
Width Over Tracks94 in
Length w/o Blade154 in

Transmission

Transmission specifications
Max Speed - Forward5.6 mph
Max Speed - Reverse5.3 mph
Transmission Typedirect drive
Number of Forward Gears6
Number of Reverse Gears4

Undercarriage

Undercarriage specifications
Track Gauge74 in
Number of Track Rollers per Side6
Standard Shoe Size16 in
Ground Contact Area2,310 in³
