Caterpillar

D5G

Crawler Dozer

Operating Weight
20,547 lb
Max Speed - Forward
5.6 mph
Gross Power
99.0 hp
Net Power
90.0 hp
All crawler dozers

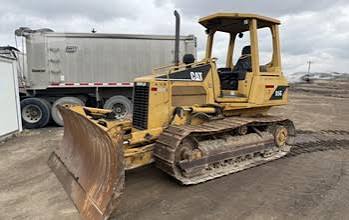

Caterpillar D5G Crawler Dozer
1 / 5
Image 1 of 5
Image: countrytruevalue.com

Specifications

36 data points

Operating Specifications

Operating Specifications specifications
Operating Weight20,547 lb
Fuel Capacity49.5 gal
Cooling System Fluid Capacity4.3 gal
Final Drives Fluid Capacity3.9 gal
Engine Oil Capacity3.5 gal

Engine

Engine specifications
Engine ModelCat 3046T
Displacement305 in³
Gross Power99.0 hp
Net Power90.0 hp
Bore4 in
Stroke5 in

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab108 in
Length of Track on Ground126 in
Width Over Tracks81 in
Length w/ Blade172 in

Transmission

Transmission specifications
Max Speed - Forward5.6 mph
Max Speed - Reverse6.0 mph

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge61 in
Number of Track Rollers per Side7
Number of Shoes per Side39
Standard Shoe Size20 in
Ground Contact Area36,631,280 in³

Service Refill Capacities

Service Refill Capacities specifications
Fuel Tank48.6 gal
Cooling System4.3 gal

Standard Blade

Standard Blade specifications
Width107 in
Height43 in
Capacity2.90 yd³
Blade Angle (both directions)25 °

Standards

Standards specifications
FOPSSAE J231-JAN81 ISO 3449-92
ROPSSAE J397-OCT95 SAE J1040-MAY94 ISO 3471-94 ISO 3164-95

Ripper

Ripper specifications
Ripper TypeParallelogram

Winch

Winch specifications
Drum Diameter10 in
Drum Width11 in
Weight1,345 lb
