Caterpillar

D5G LGP

Crawler Dozer

Operating Weight
20,434 lb
Max Speed - Forward
5.6 mph
Gross Power
99.0 hp
Net Power
90.0 hp
All crawler dozers

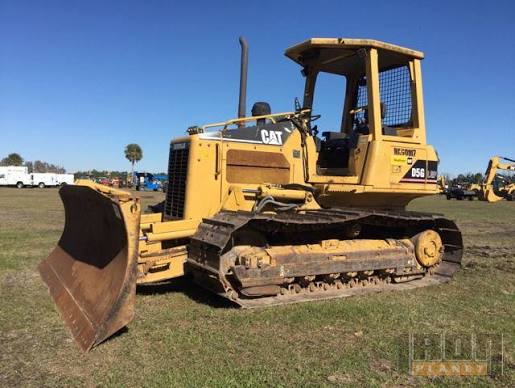

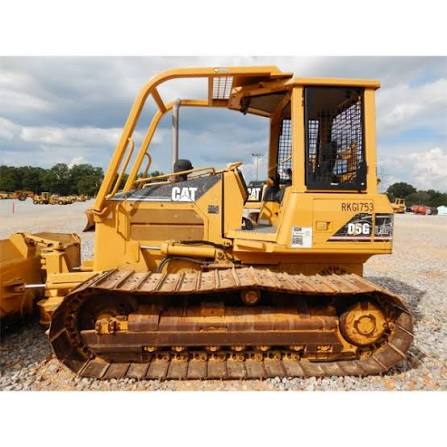

Caterpillar D5G LGP Crawler Dozer
1 / 5
Image 1 of 5
Image: countrytruevalue.com

Specifications

36 data points

Operating Specifications

Operating Specifications specifications
Operating Weight20,434 lb
Fuel Capacity48.6 gal
Cooling System Fluid Capacity4.3 gal
Final Drives Fluid Capacity5.7 gal
Engine Oil Capacity3.4 gal
Hydraulic Fluid Capacity12.0 gal
Operating Voltage12 V
Alternator Supplied Amperage120 A

Engine

Engine specifications
Engine Model3046T
Displacement305 in³
Power Measured @2,200 rpm
Gross Power99.0 hp
Net Power90.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity16.1 gal/min
Relief Valve Pressure2,900 psi

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab108 in
Length of Track on Ground91 in
Width Over Tracks95 in
Length w/ Blade168 in
Length w/o Blade126 in

Transmission

Transmission specifications
Max Speed - Forward5.6 mph
Max Speed - Reverse6.0 mph
Transmission TypeHydrostatic
Number of Forward Gears1
Number of Reverse Gears1

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge69 in
Number of Track Rollers per Side7
Number of Shoes per Side39
Standard Shoe Size26 in
Ground Contact Area4,741 in³

Standard Blade

Standard Blade specifications
Width128 in
Height41 in
Capacity3.10 yd³
Blade Angle (both directions)25 °
