Caterpillar

D5K LGP

Crawler Dozer

Operating Weight
21,347 lb
Max Speed - Forward
5.6 mph
Gross Power
100.0 hp
Net Power
96.0 hp
All crawler dozers

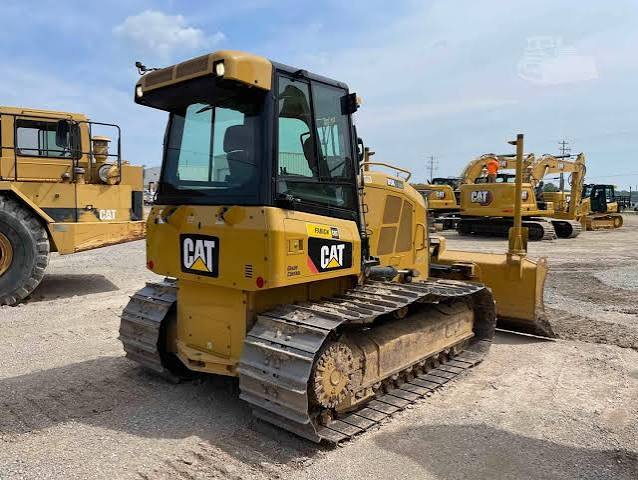

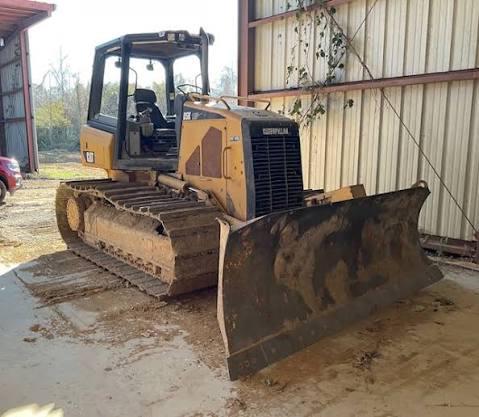

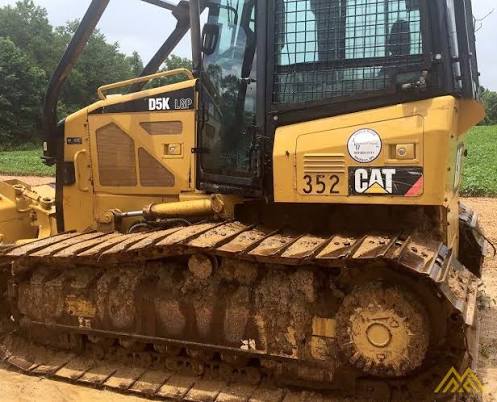

Caterpillar D5K LGP Crawler Dozer
1 / 5
Image 1 of 5
Image: tractorhouse.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight21,347 lb
Fuel Capacity51.5 gal
Cooling System Fluid Capacity6.0 gal
Final Drives Fluid Capacity2.6 gal
Engine Oil Capacity3.0 gal
Hydraulic Fluid Capacity15.7 gal
Operating Voltage12 V
Alternator Supplied Amperage120 A

Engine

Engine specifications
Engine ModelC4.4 ACERT
Displacement269 in³
Gross Power100.0 hp
Net Power96.0 hp
MakeCat

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity19.4 gal/min
Relief Valve Pressure2,988 psi

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab108 in
Length of Track on Ground91 in
Width Over Tracks96 in
Length w/o Blade130 in

Transmission

Transmission specifications
Max Speed - Forward5.6 mph
Max Speed - Reverse6.2 mph
Transmission TypeHydrostatic

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge70 in
Number of Track Rollers per Side7
Number of Shoes per Side40
Standard Shoe Size26 in
Ground Contact Area4,726 in³

Standard Blade

Standard Blade specifications
Width127 in
Height40 in
Capacity3.10 yd³
Blade Angle (both directions)25 °
