Caterpillar

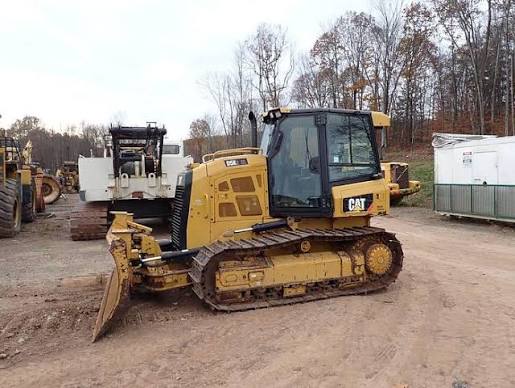

D5K2
- Operating Weight
- 20,313 lb
- Max Speed - Forward
- 5.6 mph
- Gross Power
- 104.0 hp
- Net Power
- 104.0 hp
1 / 5
Image 1 of 5
Specifications
32 data points
Operating Specifications
| Operating Weight | 20,313 lb |
|---|---|
| Fuel Capacity | 51.5 gal |
| Cooling System Fluid Capacity | 6.0 gal |
| Final Drives Fluid Capacity | 2.6 gal |
| Engine Oil Capacity | 4.9 gal |
| Hydraulic Fluid Capacity | 15.7 gal |
Engine
| Engine Model | Cat C4.4 ACERT |
|---|---|
| Displacement | 269 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 104.0 hp |
| Net Power | 104.0 hp |
| Stroke | 5 in |
| Bore | 4 in |
Dimensions
| Height - Top of Cab | 1,308 in |
|---|---|
| Length of Track on Ground | 1,542 in |
| Width Over Tracks | 1,139 in |
| Length w/ Blade | 2,040 in |
| Length w/o Blade | 1,542 in |
Transmission
| Max Speed - Forward | 5.6 mph |
|---|---|
| Max Speed - Reverse | 6.2 mph |
| Transmission Type | 2 |
Undercarriage
| Ground Pressure | 2,988 psi |
|---|
Service Refill Capacities
| Fuel Tank | 51.5 gal |
|---|---|
| Cooling System | 6.0 gal |
Standard Blade
| Width | 1,314 in |
|---|---|
| Blade Angle (both directions) | 75 ° |
Standards
| FOPS | SAE J231-JAN81 ISO 3449-92 |
|---|---|
| ROPS | SAE J397-OCT95 SAE J1040-MAY94 ISO 3471-94 ISO 3164-95 |
Ripper
| Ripper Type | Parallelogram |
|---|
Winch
| Drum Diameter | 10 in |
|---|---|
| Drum Width | 11 in |
| Weight | 1,345 lb |
