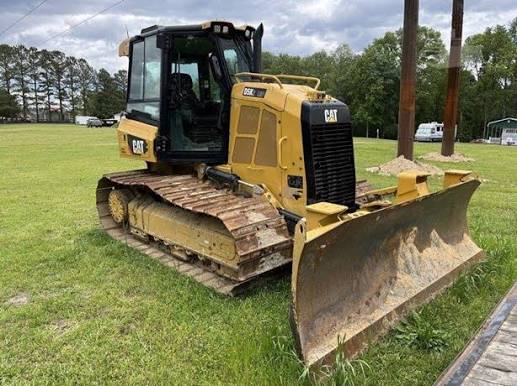

Caterpillar
D5K2 LGP
- Operating Weight
- 20,992 lb
- Max Speed - Forward
- 5.6 mph
- Gross Power
- 104.0 hp
- Net Power
- 104.0 hp
1 / 5
Image 1 of 5
Specifications
33 data points
Operating Specifications
| Operating Weight | 20,992 lb |
|---|---|
| Fuel Capacity | 51.5 gal |
| Cooling System Fluid Capacity | 3.0 gal |
| Final Drives Fluid Capacity | 15.7 gal |
| Engine Oil Capacity | 2.6 gal |
| Hydraulic Fluid Capacity | 2.6 gal |
Engine
| Engine Model | CAT C4.4 ACERT |
|---|---|
| Displacement | 269 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 104.0 hp |
| Net Power | 104.0 hp |
| Number of Cylinders | 6 |
| Make | Cat |
Hydraulic System
| Pump Flow Capacity | 17.7 gal/min |
|---|---|
| Relief Valve Pressure | 2,988 psi |
Dimensions
| Height - Top of Cab | 1,308 in |
|---|---|
| Width Over Tracks | 1,139 in |
| Length w/ Blade | 2,029 in |
| Length w/o Blade | 1,542 in |
Transmission
| Max Speed - Forward | 5.6 mph |
|---|---|
| Max Speed - Reverse | 6.2 mph |
Undercarriage
| Ground Pressure | 7,033 psi |
|---|---|
| Number of Track Rollers per Side | 7 |
| Number of Shoes per Side | 40 |
| Standard Shoe Size | 26 in |
| Ground Contact Area | 5 in³ |
General Specifications
| Weight lbs (kg) | 20,992 (9,522) Starting 2019 Model Year |
|---|---|
| Engine type | Cat C4.4 ACERT Starting 2019 Model Year |
| Engine Power HP (KW) | 104 (78) Starting 2019 Model Year |
Standard Blade
| Width | 312 in |
|---|---|
| Height | 7 in |
| Capacity | 3.10 yd³ |
| Blade Angle (both directions) | 58 ° |
