Caterpillar

D6H II

Crawler Dozer

Max Speed - Forward
7.1 mph
Gross Power
165.0 hp
All crawler dozers

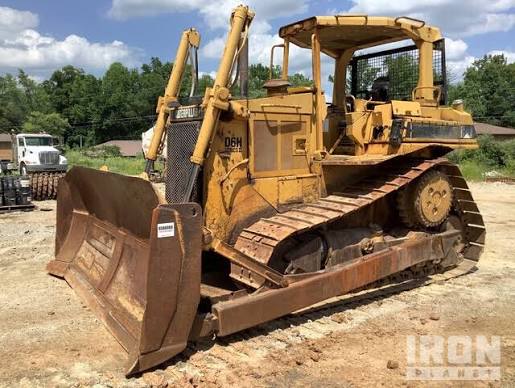

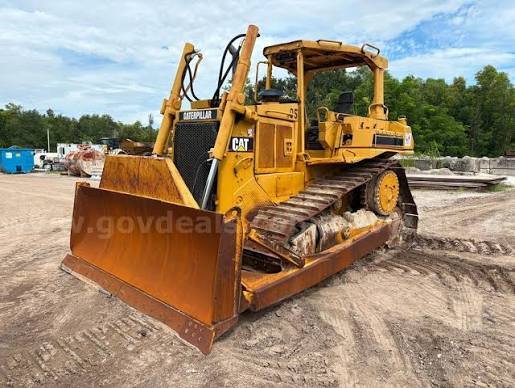

Caterpillar D6H II Crawler Dozer
1 / 5
Image 1 of 5
Image: forestrytrader.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity89.1 gal
Hydraulic Fluid Capacity12.2 gal

Engine

Engine specifications
Engine Model3306
Displacement641 in³
Gross Power165.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity44.2 gal/min
Relief Valve Pressure2,875 psi

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab124 in
Length w/ Blade198 in
Length w/o Blade161 in

Transmission

Transmission specifications
Max Speed - Forward7.1 mph
Max Speed - Reverse9.0 mph
Transmission Typepowershift
Number of Forward Gears3
Number of Reverse Gears3

Undercarriage

Undercarriage specifications
Ground Pressure9 psi
Track Gauge74 in
Number of Track Rollers per Side6
Standard Shoe Size22 in
Ground Contact Area4,557 in³
